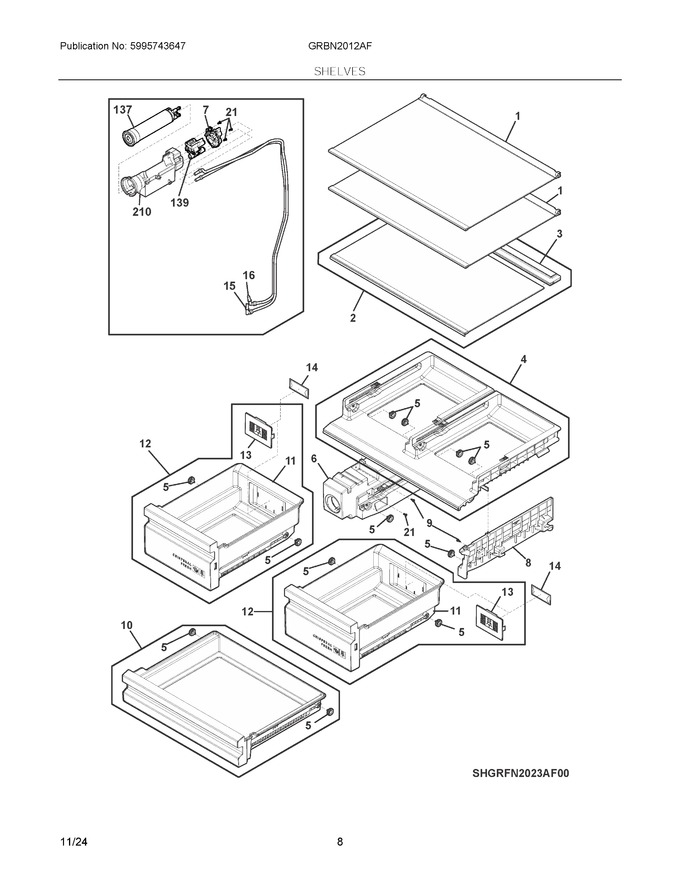

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304537043		Shelf Assembly,fresh Food ,glass ,w/trim				$ 113.95
2	5304536723		Crisper Cover,assembly ,w/membrane Assy				$ 112.73
3	5304537078		Membrane Assembly,humidity ,crisper Cover   (Replaces: 5304536724)		Appelez-nous	-
4	5304536725		Deli Cover,assembly ,w/rollers				$ 162.40
5	5304519124		Roller,crisper Glide				$ 18.71
6	5304536726		Support Assembly,complete ,lh ,w/mannifold				$ 125.52
7	5304536727		Bracket,filter Manifold				$ 10.64
8	5304536930		Support Assembly,deli Drawer ,rh ,w/roller		Appelez-nous	-
9	5304536681		Screw,hilo ,m4.2 X 16				$ 0.39
10	140236516039		Drawer Assembly,deli ,w/rollers   (Replaces: 5304536728)		Appelez-nous	-
11	5304536729		Crisper Drawer,w/rollers				$ 89.92
12	140236540062		Crisper Drawer,assembly ,complete , W/absorber Lid   (Replaces: 5304536730)		Appelez-nous	-
13	5304536931		Cover,absorber ,ethylene			Immediately	$ 6.11
14	FRPAPK2RF		Frigidaire Pa Pk-2 Refill			Immediately	$ 35.71
15	5304536704		Tubing,water ,natural ,valve ,to Filter			Immediately	$ 18.82
16	5304536705		Tubing,water ,brown ,valve ,to Filter			Immediately	$ 18.31
21	811949503		Screw,truss ,4.2 X 13				$ 3.37
137	FPPWFU01		Filter, Water, Wf-1, Frig Purepour			Immediately	$ 80.38
139	140156010054		Manifold, Water Filter   (Replaces: 5304524817)			Immediately	$ 33.97
210	5304531689		Support, Water Filter			Immediately	$ 12.37
