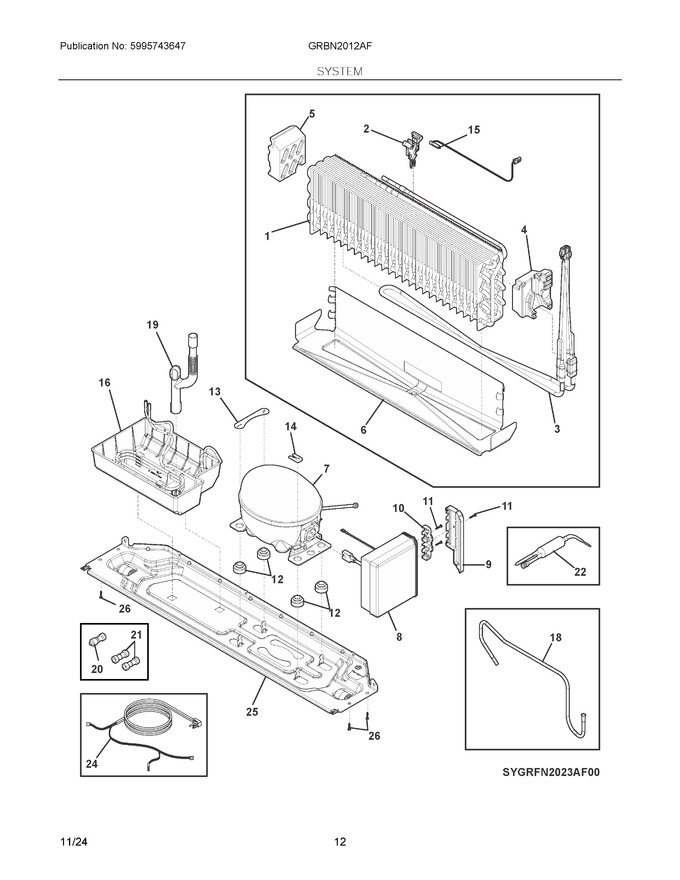

07 - System


08 - Ice Maker


09 - Wiring Schematic


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304536686		Evaporator,assembly			Immediately	$ 156.79
2	5304536687		Clip,evaporator				$ 2.81
3	5304536688		Heater,defrost ,2 Pass ,evaporator				$ 181.86
4	5304536689		Support,evaporator ,rh				$ 7.39
5	5304536690		Support,evaporator ,lh				$ 7.39
6	5304536691		Trough,heat Shield ,evaporator				$ 55.29
7	5304536694		Compressor,vtx1113y			Immediately	$ 470.00
8	5304536695		Pc Board,inverter				$ 280.53
9	5304533517		Cover,flex Drive ,side ,compressor		Appelez-nous	-
10	5304526793		Clamp,flex Drive ,cable				$ 10.11
11	5304532654		Screw,flex Drive ,4*10 Hi Lo		Appelez-nous	-
12	811978901		Grommet,compressor		Appelez-nous	-
13	5304533505		Clamp,compressor ,2 Hole		Appelez-nous	-
14	5304519152		Clamp,compressor ,single Hole		Appelez-nous	-
15	5303918851		Thermostat Kit,defrost ,w/connectors			Immediately	$ 40.83
16	5304536696		Drain Pan,assembly ,w/heater Tube				$ 51.29
18	5304536697		Tube,suction ,jumper				$ 31.91
19	5304536698		Tube,drain				$ 18.47
20	L13000622		Lock Ring,drier ,3n St 01			Immediately	$ 13.02
21	L13000584		Lokring,4n St 82			Immediately	$ 7.94
22	A19676501		Filter,drier ,service			Immediately	$ 110.81
24	140123753034		Power Cord,electric Srvc		Appelez-nous	-
25	5304536679		Base Assembly,compressor ,w/rollers				$ 66.32
26	808199001		Screw,self Tapping ,6 X 20				$ 7.88
NI	5304523032		Screw,trilob ,m4 X 7.5		Appelez-nous	-
NI	811949503		Screw,truss ,4.2 X 13				$ 3.37
