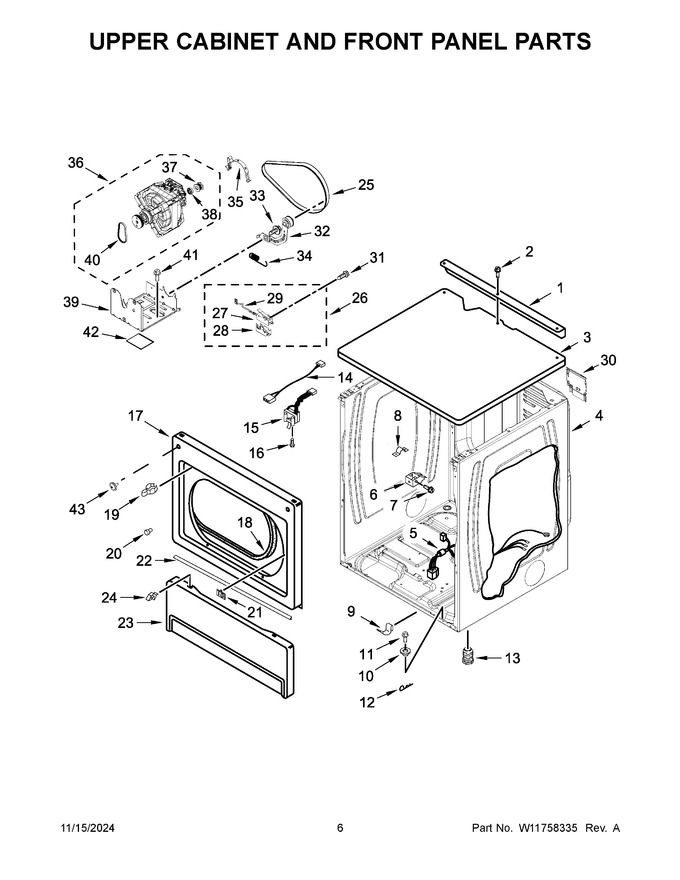

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3979115 | Bracket, Angle |
|
- | |||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 3 | 3389351 | Top (white) |
|
- | |||||
| 4 | W11417441 | Cabinet (white) (Replaces: W11161907) |
|
$ 440.17 | |||||
| 5 | W10807486 | Harness, Upper/lower |
|
- | |||||
| 6 | 3391846 | Clip, Front Panel |
|
$ 22.21 | |||||
| 7 | 681615 | Screw (Replaces: 3391915) |
|
$ 14.57 | |||||
| 8 | WP98997 | Clip (Replaces: 98997) |
|
$ 11.64 | |||||
| 9 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 8.14 | |||||
| 10 | 3389233 | Bushing |
|
- | |||||
| 11 | 3400523 | Bolt, Security |
|
- | |||||
| 12 | W10117347 | Cotter Pin |
|
- | |||||
| 13 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 14 | 8283298 | Jumper, Door Switch |
|
$ 87.92 | |||||
| 15 | WPW10237959 | Switch, Door (Replaces: W10237959) |
|
Immediately | $ 55.64 | ||||
| 16 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 17 | W11832207 | Panel, Front (Replaces: W10694688) |
|
$ 286.16 | |||||
| 18 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 19 | W11429589 | Strike, Door (Replaces: W11224633) |
|
Immediately | $ 20.99 | ||||
| 20 | 693152 | Bumper |
|
$ 11.51 | |||||
| 21 | W10521429 | Cover, Strike (white) |
|
- | |||||
| 22 | W10576519 | Seal, Deflector |
|
- | |||||
| 23 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 250.25 | |||||
| 24 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 25 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.00 | ||||
| 26 | W11247665 | Switch, Assembly (Replaces: W11233966) |
|
$ 27.72 | |||||
| 27 | WP8564010 | Assembly, Switch And Actuator (Replaces: 8564010) |
|
$ 104.11 | |||||
| 28 | W11247665 | Bracket, Switch (Replaces: W11159569) |
|
$ 27.72 | |||||
| 29 | W10167613 | Wire, Belt Switch |
|
- | |||||
| 30 | W11417441 | Cover, Terminal (Replaces: W11378153) |
|
$ 440.17 | |||||
| 31 | WP98129 | Screw (Replaces: 98129) |
|
$ 8.18 | |||||
| 32 | WPW10344192 | Assembly, Idler (Replaces: W10344192) |
|
Immediately | $ 94.57 | ||||
| 33 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 34 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 35 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 36 | W11234001 | Assembly, Motor 60 Hz. (Replaces: W10918085) |
|
Immediately | $ 433.87 | ||||
| 37 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 38 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 39 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 134.62 | |||||
| 40 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 36.99 | ||||
| 41 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 8.47 | ||||
| 42 | W11113654 | Pad, Sound (Replaces: W10836094) |
|
$ 23.29 | |||||
| 43 | W10879744 | Screw |
|
- | |||||
| NI | W10470674 | Dryer Exhaust Kit Not Included, Kit, 4-way Venting |
|
Immediately | $ 76.65 |
