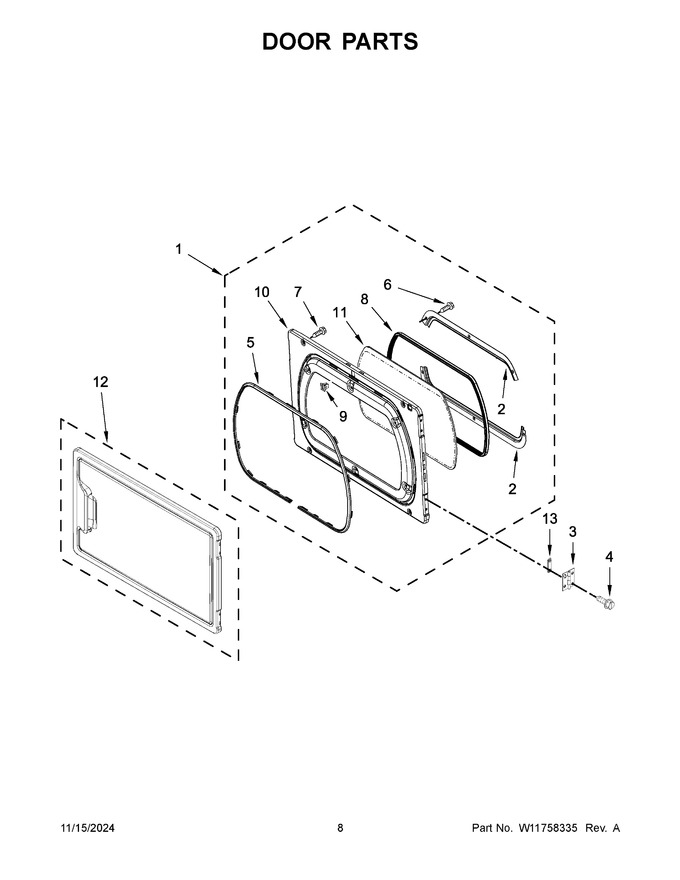

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11652037 | Assembly, Inner Door (white) (Replaces: W10513690) |
|
$ 208.90 | |||||
| 2 | W10822054 | Retainer, Window (Replaces: 8519354) |
|
Immediately | $ 18.01 | ||||
| 3 | WPW10279703 | Hinge & Pin Assembly (silver) (Replaces: W10279703) |
|
$ 75.83 | |||||
| 4 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 5 | WPW10354795 | Seal, Door (Replaces: W10354795) |
|
$ 130.12 | |||||
| 6 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 8.52 | |||||
| 7 | WPW10273971 | Screw (Replaces: W10192860) |
|
Immediately | $ 7.55 | ||||
| 8 | W11676508 | Seal, Window (Replaces: W10284122) |
|
$ 28.37 | |||||
| 9 | 279570 | Assembly, Door Catch (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 10 | W10822056 | Door, Inner (white) (Replaces: W10470571) |
|
$ 219.14 | |||||
| 11 | WPW10284121 | Glass, Door (Replaces: W10284121) |
|
$ 263.61 | |||||
| 12 | WPW10284127 | Door, Outer Assembly (white) (Replaces: W10284127) |
|
$ 222.35 | |||||
| 13 | W10191265 | Plug-hinge Screw (white) |
|
$ 46.49 |
