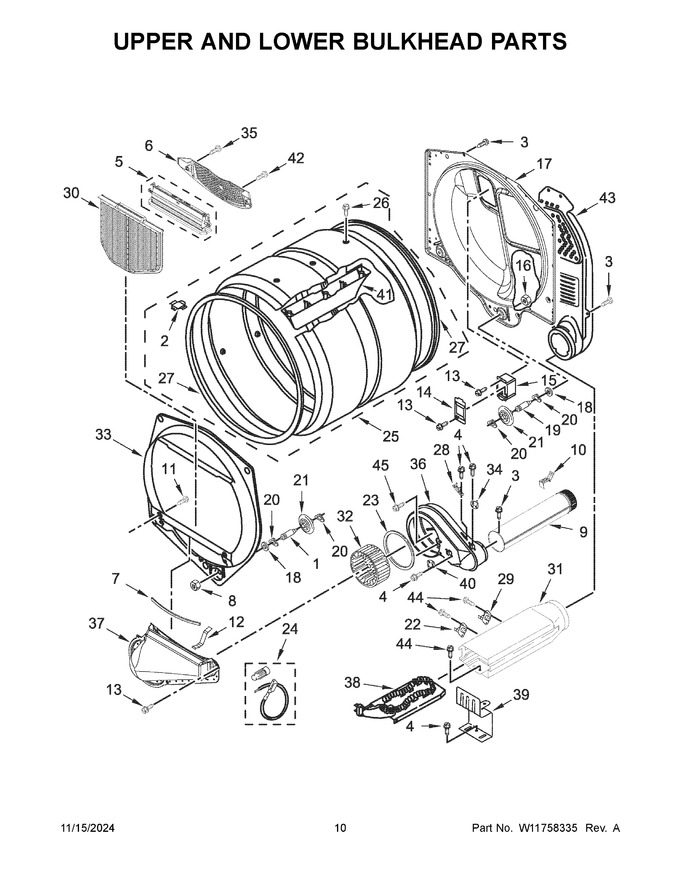

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 2 | 8066086 | Plug, Drum Hole |
|
$ 10.75 | |||||
| 3 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 4 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 5 | W11129408 | Assembly, Outlet Housing (Replaces: W10685669) |
|
Immediately | $ 53.28 | ||||
| 6 | W11086603 | Grill, Outlet (Replaces: W10692558) |
|
Immediately | $ 35.14 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.97 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 12.16 | |||||
| 9 | 279936 | Pipe, Exhaust (Replaces: 8066224) |
|
$ 146.84 | |||||
| 10 | W11684573 | Clip, Exhaust (Replaces: 8572105) |
|
$ 7.78 | |||||
| 11 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 12 | WP8066208 | Clip, Spring (Replaces: W10345456) |
|
$ 8.17 | |||||
| 13 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 14 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 31.09 | |||||
| 15 | 8578825 | Bracket, Drum Light |
|
$ 20.88 | |||||
| 16 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 8.49 | ||||
| 17 | W11299301 | Bulkhead, Rear (Replaces: W11162455) |
|
$ 247.75 | |||||
| 18 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.03 | ||||
| 19 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 22 | WP3391914 | Thermostat Hl-295/215 (Replaces: 3391914) |
|
Immediately | $ 119.47 | ||||
| 23 | WP697770 | Seal, Plate Cover (Replaces: 697770) |
|
Immediately | $ 7.88 | ||||
| 24 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 25 | W10545923 | Assembly, Drum |
|
$ 436.76 | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.75 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 70.82 | ||||
| 28 | WP3392519 | Fuse, Thermal (91c) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 29 | 279973 | Kit, Thermal Cut-off (includes Thermostat) |
|
Immediately | $ 75.60 | ||||
| 30 | W10120998 | Screen, Lint (Replaces: W10049370) |
|
$ 67.16 | |||||
| 31 | W10802681 | Assembly, Weld Heater Box (Replaces: W10891205) |
|
Immediately | $ 129.67 | ||||
| 32 | WPW10349492 | Wheel, Blower (Replaces: W10349492) |
|
Immediately | $ 120.33 | ||||
| 33 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 208.03 | |||||
| 34 | WPW10193019 | Thermostat, Electronic (155f) (Replaces: W10193019) |
|
$ 133.75 | |||||
| 35 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 36 | W11744012 | Housing, Blower (Replaces: W10135254) |
|
$ 115.95 | |||||
| 37 | WPW10128606 | Assembly, Lint Duct (Replaces: 8066168) |
|
$ 207.12 | |||||
| 38 | W10864898 | Element, Heater (Replaces: W10832958) |
|
$ 319.62 | |||||
| 39 | 8066099 | Bracket, Heater Box |
|
$ 24.35 | |||||
| 40 | WPW10131836 | Thermostat (Replaces: W10131836) |
|
$ 158.56 | |||||
| 41 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 91.02 | ||||
| 42 | WP488729 | Screw (Replaces: 695240) |
|
Immediately | $ 7.79 | ||||
| 43 | W11677720 | Assembly, Air Duct (Replaces: W11104018) |
|
$ 210.21 | |||||
| 44 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 45 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.82 |
