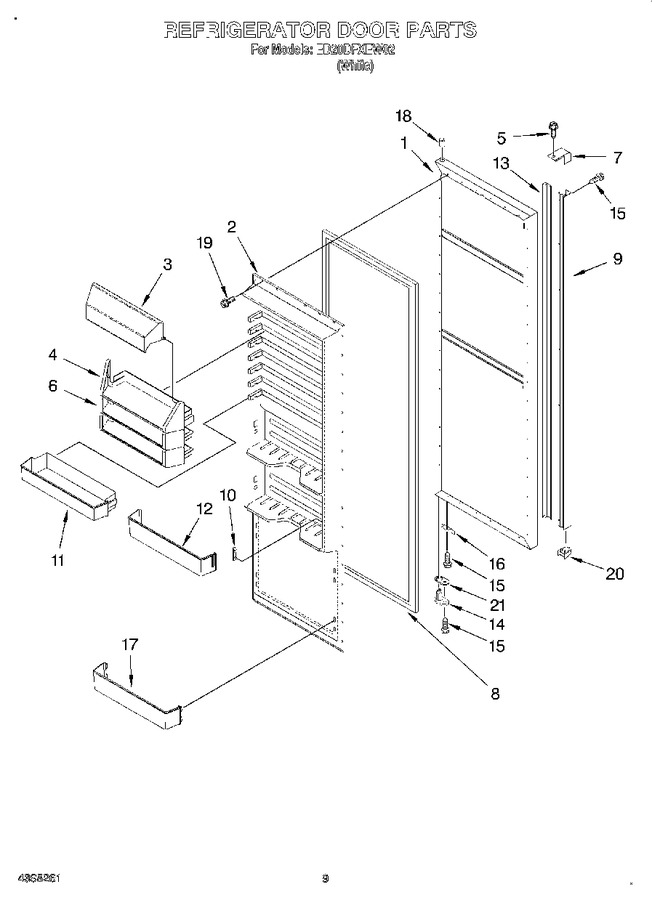

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4343803		Refrigerator Door Panel (includes Insulation)		Appelez-nous	-
2	4343804		Interior Panel		Appelez-nous	-
3	4343816		Door, Dairy		Appelez-nous	-
4	4343809		Shelf, Dairy		Appelez-nous	-
5	4343693		Screw		Appelez-nous	-
6	4343817		Shelf Bin (2)		Appelez-nous	-
7	4343630		Cap, Handle Top		Appelez-nous	-
8	4343812		Door Gasket, Magnetic		Appelez-nous	-
9	4343728		Door Handle		Appelez-nous	-
10	4343810		Clip, Retainer		Appelez-nous	-
11	4343815		Shelf Bin		Appelez-nous	-
12	4343805		Shelf Bin (2)		Appelez-nous	-
13	4343731		Insert, Handle		Appelez-nous	-
14	R0181181		Door Closer, Upper Cam   (Replaces: 4343939)			Immediately	$ 7.19
15	WP98165		Screw   (Replaces: 4343675)				$ 8.00
16	8170290		Bracket, Door Stop		Appelez-nous	-
17	4343814		Shelf Bin (2)		Appelez-nous	-
18	4343943		Hinge Sleeve		Appelez-nous	-
19	8170322		Screw		Appelez-nous	-
20	4343766		Cap, Bottom		Appelez-nous	-
21	4378878		Door Panel Trim Kit (white)		Appelez-nous	-
21	8170324		Shim, Door Closer		Appelez-nous	-
21	4378872		Perimiter Trim Kit (white)		Appelez-nous	-
