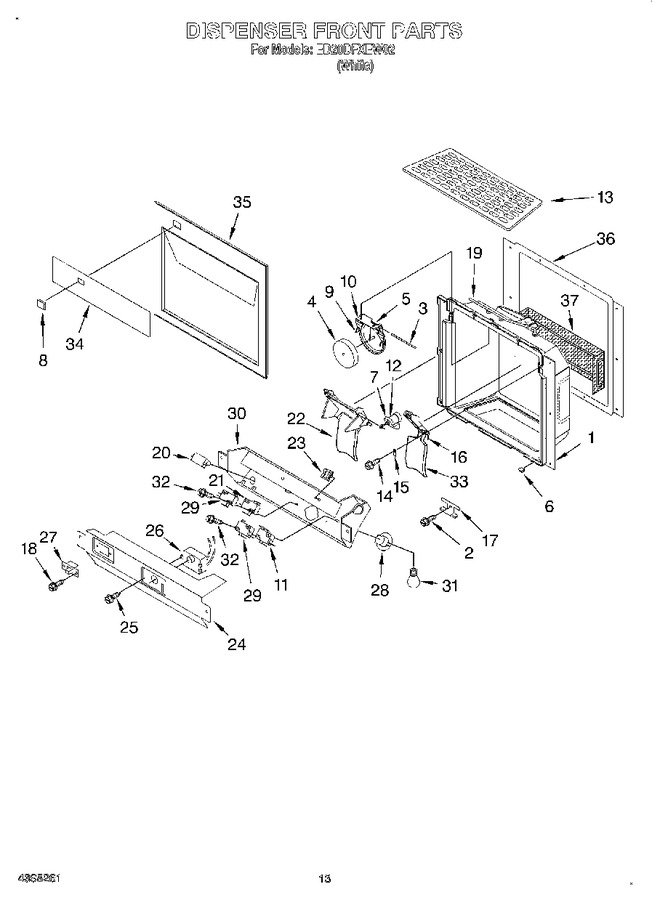

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4344559 | Housing, Dispenser (includes No.37) |
|
- | |||||
| 2 | 4343838 | Screw |
|
- | |||||
| 3 | 4343946 | Pin, Chute Door |
|
- | |||||
| 4 | 4343948 | Insulation, Door |
|
- | |||||
| 5 | 4343950 | Spring, Chute Door |
|
- | |||||
| 6 | 4343952 | Clip |
|
- | |||||
| 7 | 4343953 | Retainer, Door Delay |
|
- | |||||
| 8 | 4343624 | Cap, Cube/crush Switch |
|
- | |||||
| 9 | 4343955 | Door, Ice |
|
- | |||||
| 10 | 4343949 | Bracket, Chute Door |
|
- | |||||
| 11 | 4343963 | Switch |
|
- | |||||
| 12 | 4343954 | Mechanism Delay |
|
- | |||||
| 13 | 4343679 | Grille, Overflow |
|
- | |||||
| 14 | 4343962 | Screw |
|
- | |||||
| 15 | 4343947 | Clip, Lever (4) |
|
- | |||||
| 16 | 4343951 | Spring, Lever |
|
- | |||||
| 17 | 4343823 | Clip, Cover |
|
- | |||||
| 18 | 4343974 | Screw |
|
- | |||||
| 19 | W10823511 | Tube, Water (Replaces: 4343701) |
|
Immediately | $ 32.41 | ||||
| 20 | 4343966 | Light Switch |
|
- | |||||
| 21 | 4343968 | Micro Switch |
|
- | |||||
| 22 | 4343956 | Lever, Ice Dispenser |
|
- | |||||
| 23 | 4343969 | Clip, Wire |
|
- | |||||
| 24 | 4343970 | Cover |
|
- | |||||
| 25 | 4343971 | Screw |
|
- | |||||
| 26 | 4343972 | Switch, Sensor |
|
- | |||||
| 27 | 4343973 | Switch, Cube/ Crush |
|
- | |||||
| 28 | 4343967 | Lamp Holder |
|
- | |||||
| 29 | WP10533003 | Switch (2) (Replaces: 4343964) |
|
$ 69.80 | |||||
| 30 | 4343832 | Bracket, Control |
|
- | |||||
| 31 | WP22002263 | Bulb, Light (Replaces: 4343839) |
|
Immediately | $ 13.66 | ||||
| 32 | 4343965 | Screw |
|
- | |||||
| 33 | 8170329 | Lever, Water Dispenser |
|
- | |||||
| 34 | 4343618 | Plaque, Front Cover |
|
- | |||||
| 35 | 4343621 | Front Cover, Housing |
|
- | |||||
| 36 | 4343831 | Gasket |
|
- | |||||
| 37 | 8170331 | Heater, Dispenser |
|
- |
