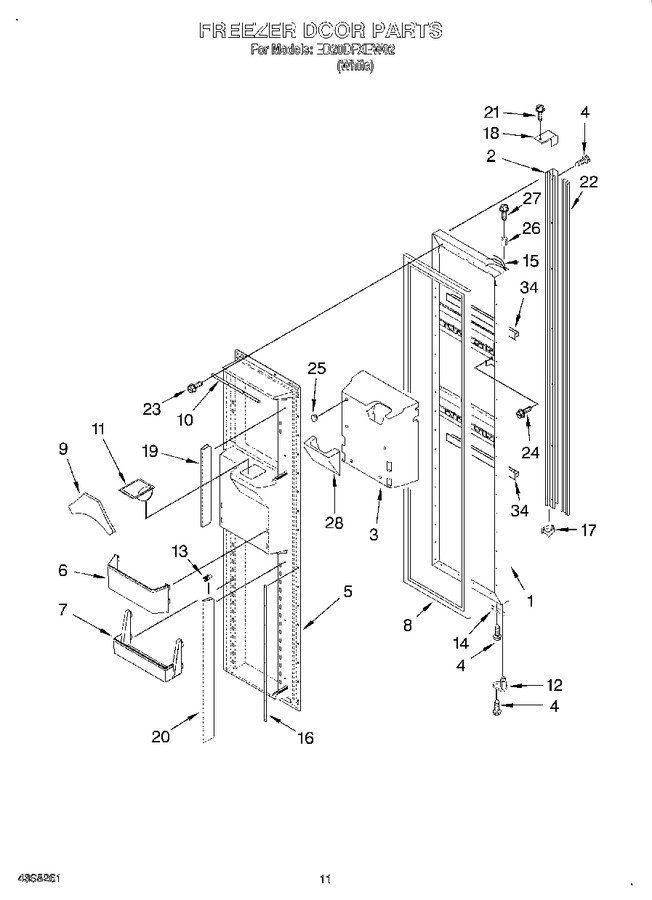

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4343820		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	4343734		Handle		Appelez-nous	-
3	8170327		Insulation, Dispenser Cavity		Appelez-nous	-
4	WP98165		Screw   (Replaces: 4343675)				$ 8.00
5	4343821		Interior Panel		Appelez-nous	-
6	4343747		Trivet, Shelf		Appelez-nous	-
7	4343746		Shelf Bin (4)		Appelez-nous	-
8	4343833		Door Gasket, Magnetic		Appelez-nous	-
9	4343634		Seal, Ice Chute		Appelez-nous	-
10	4343824		Retainer (top & Bottom)		Appelez-nous	-
11	4343633		Chute, Ice		Appelez-nous	-
12	R0181181		Door Closer, Upper Cam   (Replaces: 4343941)			Immediately	$ 7.19
13	4343825		Clip, Removable Door Dike		Appelez-nous	-
14	8170290		Bracket, Door Stop		Appelez-nous	-
15	4343826		Harness, Door		Appelez-nous	-
16	4343835		Retainer (side)		Appelez-nous	-
17	4343769		Cap, Bottom		Appelez-nous	-
18	4343627		Cap, Top		Appelez-nous	-
19	4343836		Removable Door Dike, Top		Appelez-nous	-
20	4343837		Removable Door Dike, Bottom		Appelez-nous	-
21	4343693		Screw		Appelez-nous	-
22	4343741		Insert, Handle		Appelez-nous	-
23	4343811		Screw (42)		Appelez-nous	-
24	WP489399		Screw   (Replaces: 4343691)				$ 6.95
25	8170293		Button Plug		Appelez-nous	-
26	WP67004977		Hinge Sleeve   (Replaces: 4343945)				$ 7.81
27	4343725		Screw, Ground		Appelez-nous	-
28	8170328		Insulation, Dispenser Chute		Appelez-nous	-
34	8170314		Retainer, Decorative Panel		Appelez-nous	-
