Diagram # Part Number Description Series Availability Ships Price Add to Cart
87 WR02X36891 Screw St3.9-1.4 Ab Ihxwt20 16 S Appelez-nous -
647 WR01X11041 Quick Clip Connector 1/4 Appelez-nous -
683 WR01X10602 Scr 8-32 Ab Ihws 3/8 S Appelez-nous -
684 WR01X10635 Scr 8-32 Ca Ihxw .625 S Appelez-nous -
690 WZ05X0158 Screw 8-32x3/8 Grd Scr Appelez-nous -
691 WR02X36711 Screw St5.5-1.8 Ab Ihxw 20 S Appelez-nous -
703 WR02X36721 Screw St4.0-1.4 Ab Ihxwt20 20 S Appelez-nous -
723 WR14X10055 Grommet Tubing Slit Appelez-nous -
729 WR55X24064 Kit Capacitor 12 Uf Appelez-nous -
735 WG03F01425 Combo Device Tsd-2   (Replaces: WR08X10111) In-Stock Immediately $ 55.98

736 WR02X28299 Compressor Mounting Clip Appelez-nous -
737 WR02X36713 Compressor Grommet Appelez-nous -
750 WR1X1786 Screw Appelez-nous -
900 WR57X27487 Valve Water Iso Asm Appelez-nous -
901 WR55X46808 Board Asm Main Reflashed Appelez-nous -
903 WR02X25126 Cover Mainboard Appelez-nous -
906 WR55X37308 Personality Jumper Appelez-nous -
909 WR02X37286 Condenser Support Appelez-nous -
912 WR02X13685 Wheel Appelez-nous -
913 WR01X11008 Axle Wheel Appelez-nous -
915 WR84X34173 Jumper Compressor Discharge Tube Appelez-nous -
916 WR82X37208 Rear Access Cover Appelez-nous -
919 WR84X37207 Suction Jumper Tube Appelez-nous -
920 WR87X41785 Compressor Meizhi Appelez-nous -
928 WR60X37209 Condenser Fan And Gasket Asm Appelez-nous -
930 WR84X38825 Condenser Appelez-nous -
935 WR17X13045 Baffle Cond Air Appelez-nous -
936 WR23X37707 Refrigerator Harness Ground Appelez-nous -
940 WR86X37550 Dye Drier Appelez-nous -
942 WR86X37548 Valve Body Asm Appelez-nous -
943 WR86X10091 Coil 3 Way Valve Appelez-nous -
958 WR02X13724 Mastic Sound Deadening Appelez-nous -
960 WR23X24389 Harness Power Cord Appelez-nous -
961 WR02X36719 Screw St3.9-1.4 Ab Flt20 16 S Appelez-nous -
991 WR02X37264 Condenser Strap Appelez-nous -
993 WR02X28514 Refrigerator Drain Tube Appelez-nous -
994 WR01X28515 Refrigerator Drain Vacuum Break Valve Appelez-nous -
1003 WR01X10618 Scr 8-18 Tpt 1/4 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

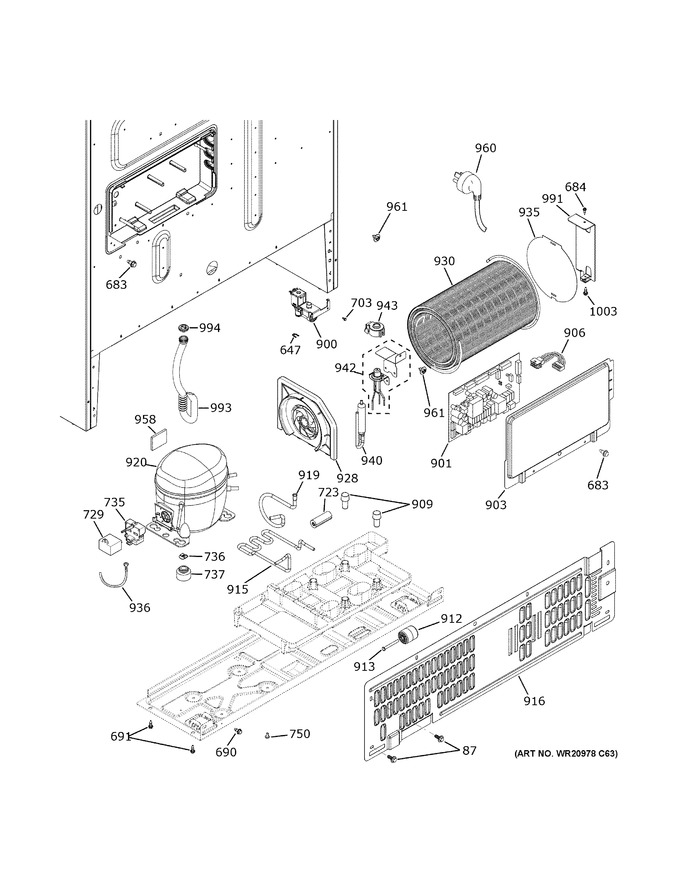

Diagram for GFE28GMKVES
