Diagram # Part Number Description Series Availability Ships Price Add to Cart
411 WR60X35669 Freezer Fan W/ Felt Appelez-nous -
425 WR02X10879 Clip Evap Thermistor Appelez-nous -
428 WR87X36101 Freezer Evaporator Appelez-nous -
430 WR84X10113 Refrigerator Suction Cap Tube Repair Kit Appelez-nous -
461 WR55X36087 Freezer Heater And Harness Appelez-nous -
462 WR02X13734 Tape Felt Appelez-nous -
473 WR17X13080 Trough Drain Fz Appelez-nous -
486 WR17X35667 Freezer Evaporator Cover Appelez-nous -
487 WR17X35246 Freezer Fan Cover Appelez-nous -
703 WR02X36721 Screw St4.0-1.4 Ab Ihxwt20 20 S Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

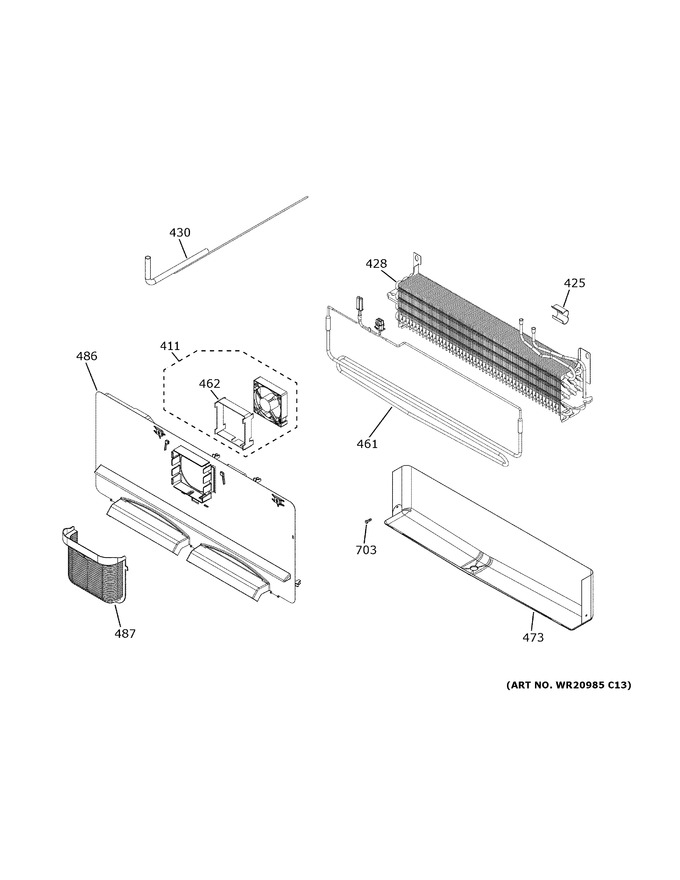

Diagram for GFE28GMKVES
