SELECT A DIAGRAM

Case Parts


Dispenser Door


Freezer Door


Freezer Section


Freezer Shelves


Fresh Food Door - Rh


Fresh Food Section


Fresh Food Shelves


Ice Maker & Dispenser


Lokring Connectors


Machine Compartment


Optional Accessories

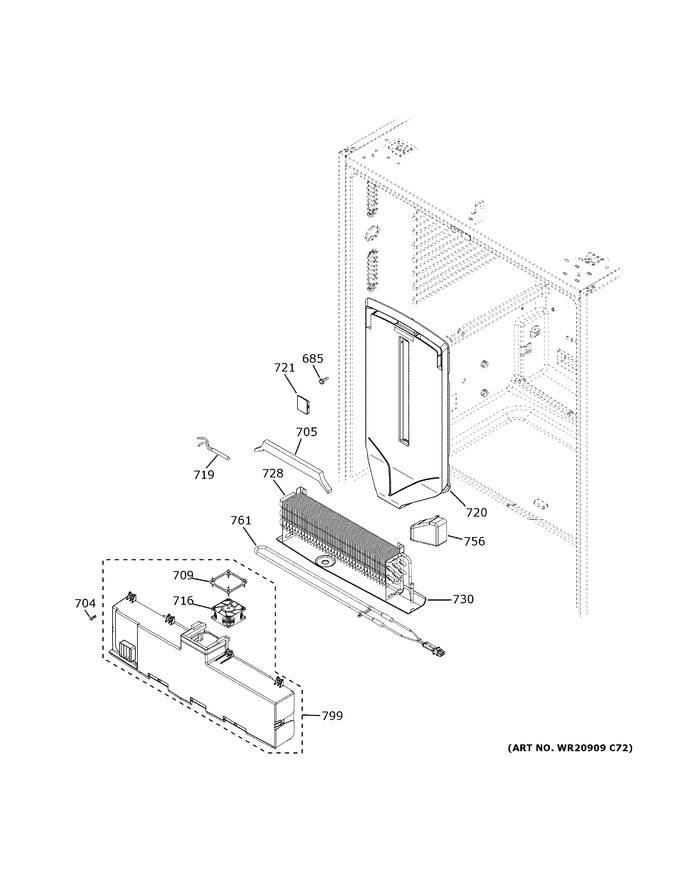

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
685	WR02X29370		Screw 8-18 Ab Hxw 1/2 S		Appelez-nous	-
704	WR01X11061		Scr 8-18 Hi/lo Hwx 3/4		Appelez-nous	-
705	WR02X29333		Foam Seal		Appelez-nous	-
709	WR02X30166		Fresh Food Fan Mounting Gasket		Appelez-nous	-
716	WR60X35205		Refrigerator Fan Motor		Appelez-nous	-
719	WR01F01730		Sensor Temp Ff   (Replaces: WR55X10025)			Immediately	$ 16.29
720	WR17X35668		Air Tower		Appelez-nous	-
721	WR02X29328		Center Track Screw Cover		Appelez-nous	-
728	WR87X36103		Refrigerator Evaporator With Heater		Appelez-nous	-
730	WR17X13091		Trough Drain Ff		Appelez-nous	-
756	WR17X28921		Fresh Food Fan Connector Cover		Appelez-nous	-
761	WR55X36090		Refrigerator Heater And Harness		Appelez-nous	-
799	WR17X35985		Refrigerator Evaporator Cover		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
