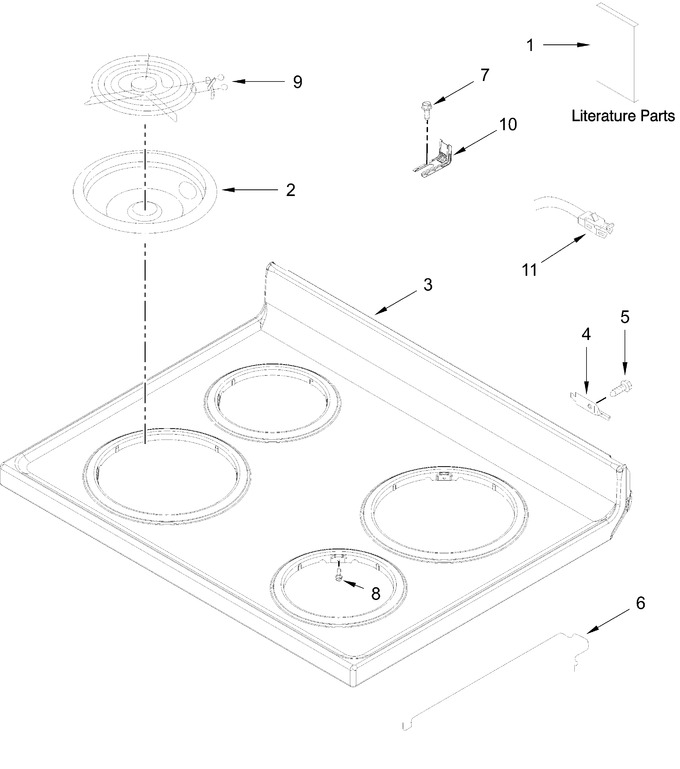

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | WPW10196406 | Bowl, Drip (6 In) (Replaces: W10196406) |
|
Immediately | $ 13.39 | ||||
| 3 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 419.31 | |||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | WP3195812 | Rod, Support (Replaces: 3195812) |
|
Immediately | $ 8.73 | ||||
| 7 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 8 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 9 | W11396790 | Element, Coil Heating (2400w) (Replaces: W11364019) |
|
Immediately | $ 102.17 | ||||
| 10 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 11 | 814399 | Receptacle, Element |
|
Immediately | $ 43.19 | ||||
| ARIB611E097F24A5B39CE73CD94D5F3EAC2 | (left Front And Right Rear) |
|
- | ||||||
| W11396691 | Harness, Cooktop (Replaces: W11134595) |
|
$ 189.76 | ||||||
| WPW10196405 | Bowl, Drip (8 In) (Replaces: W10196405) |
|
Immediately | $ 17.29 | |||||
| W11750781 | Harness, Main (Replaces: W11648572) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| WPW10281322 | Kit, Bare Wire Adapter Block (Replaces: W10281322) |
|
$ 8.87 | ||||||
| W11745404 | Owners, Manual |
|
- | ||||||
| W11396792 | Element, Coil Heating (1500w) (Replaces: W11364018) |
|
Immediately | $ 100.51 | |||||
| W11745406 | Quick Start Guide |
|
- | ||||||
| W11746491 | Tech Sheet |
|
- | ||||||
| ARI2E962017DA4514642427E1A1F5A9C94C | (right Front And Left Rear) |
|
- |
