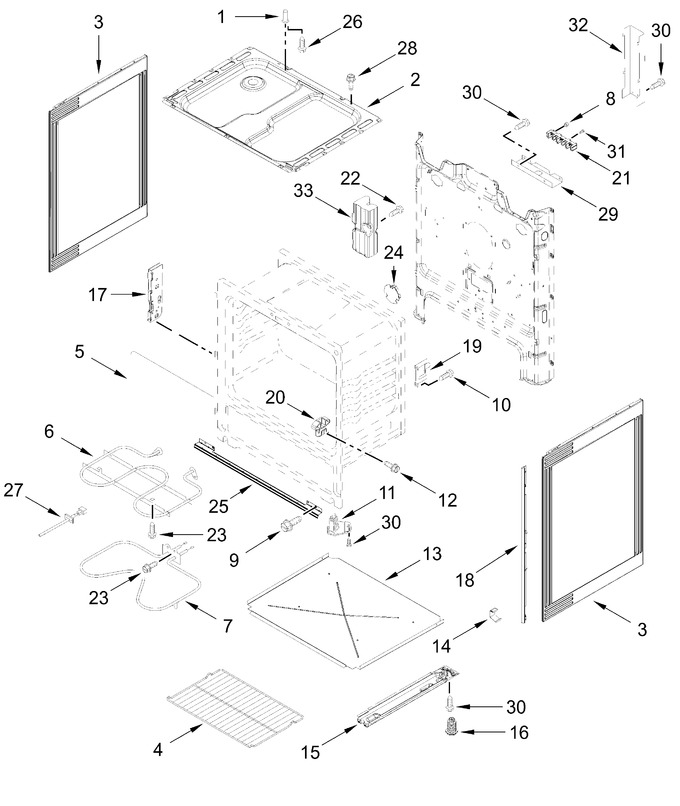

Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11253586 | Tube, Vent (Replaces: W11222267) |
|
- | |||||
| 2 | W11699791 | Box, Burner (Replaces: W11380208) |
|
$ 262.30 | |||||
| 3 | W11727013 | Panel, Side (white) (Replaces: W11445761) |
|
$ 290.29 | |||||
| 4 | W11520287 | Rack, Oven (Replaces: W11173792) |
|
Immediately | $ 46.84 | ||||
| 5 | W11542153 | Seal, Door (Replaces: W10129032) |
|
Immediately | $ 50.20 | ||||
| 6 | W10856603 | Element, Broil (Replaces: W10308476) |
|
Immediately | $ 154.62 | ||||
| 7 | W11182108 | Element, Bake (Replaces: W11022836) |
|
Immediately | $ 92.65 | ||||
| 8 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 9 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 11 | WPW10341186 | Front Foot, Assembly (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 12 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 13 | WP8054068 | Retainer, Insulation (Replaces: 8054068) |
|
$ 104.36 | |||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 15 | W11818353 | Base Rail, Assembly (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 16 | WPW10058460 | Foot, Leveling (rear) (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 17 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 18 | W11594227 | Barrier Rail, Rubber (left And Right) (Replaces: W11510560) |
|
Immediately | $ 76.68 | ||||
| 19 | W10404688 | Clip, Oven Support |
|
$ 17.69 | |||||
| 20 | W10807823 | Glide, Drawer Front (Replaces: W10674705) |
|
Immediately | $ 19.30 | ||||
| 21 | W11736123 | Block, Terminal (without Ground Strap) (Replaces: W11750818) |
|
$ 16.13 | |||||
| 22 | W11135756 | Screw (Replaces: W11034869) |
|
$ 14.73 | |||||
| 23 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 24 | W11730256 | Hole, Cover Light (Replaces: W11657929) |
|
- | |||||
| 25 | W11464547 | Bracket, Front Frame |
|
$ 45.89 | |||||
| 26 | WP3196567 | Screw (Replaces: 3196567) |
|
$ 8.06 | |||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 28 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 29 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 30 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 31 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 32 | WPW10326122 | Cover, Terminal Block (Replaces: W10326122) |
|
$ 139.60 | |||||
| 33 | W11135752 | Counterweight (Replaces: W10910404) |
|
Immediately | $ 153.79 | ||||
| W11818353 | Base Rail, Assembly (right) (Replaces: W10390007) |
|
$ 62.66 | ||||||
| WPW10208653 | Insulation, Wrap (Replaces: 8273263) |
|
Immediately | $ 55.47 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11311894 | Insulation, Back (Replaces: 8272611) |
|
$ 115.11 |
