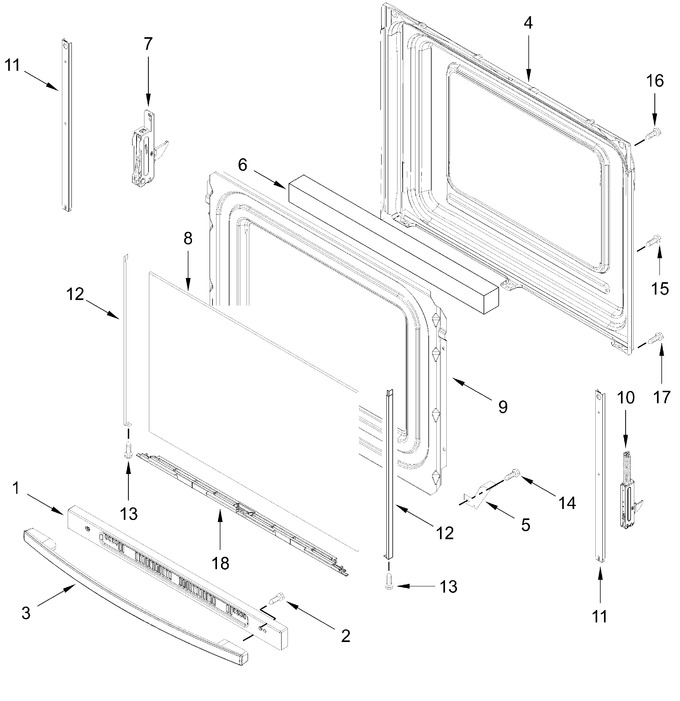

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10817433 | Trim, Top Vent (white) (Replaces: W10310920) |
|
Immediately | $ 103.27 | ||||
| 2 | WPW10465148 | Screw (Replaces: W10465148) |
|
Immediately | $ 8.79 | ||||
| 3 | W10300489 | Handle, Door (white) |
|
Immediately | $ 244.88 | ||||
| 4 | 9761342 | Liner, Door |
|
- | |||||
| 5 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 6 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 7 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 8 | W11688547 | Glass , Outer Door (white) (Replaces: W11608538) |
|
$ 201.41 | |||||
| 9 | W11699790 | Retainer, Insulation (Replaces: W11380207) |
|
- | |||||
| 10 | WPW10299225 | Hinge, Active (Replaces: W10299225) |
|
Immediately | $ 52.34 | ||||
| 11 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 27.68 | ||||
| 12 | WP8523172 | Trim, Door Side (white Left) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 13 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 14 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 15 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 16 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 17 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 18 | W11594186 | Trim, Bottom Door (white) (Replaces: W11444042) |
|
Immediately | $ 61.37 | ||||
| WP8523166 | Trim, Door Side (white Right) (Replaces: 8523166) |
|
Immediately | $ 84.23 |
