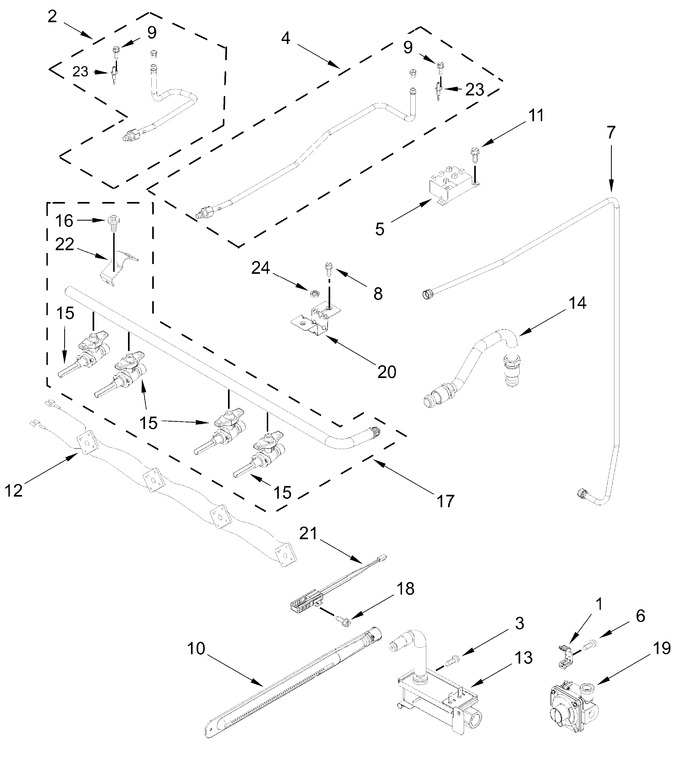

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Backguard Parts
Broiler Parts
Chassis Parts
Cooktop Parts
Door Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98007410 | Bracket, Regulator |
|
- | |||||
| 2 | W10859921 | Tubing, Assembly (Replaces: W10543959) |
|
- | |||||
| 3 | 98013634 | Screw |
|
- | |||||
| 4 | W11213836 | Tubing, Assembly (Replaces: W10512770) |
|
- | |||||
| 5 | W11590249 | Module, Spark (Replaces: W11281166) |
|
$ 24.51 | |||||
| 6 | WP98007225 | Screw (Replaces: 98007225) |
|
$ 7.30 | |||||
| 7 | W11628651 | Tube 3/8 Inch Manifold To Reg (Replaces: W10619922) |
|
- | |||||
| 8 | W10837674 | Screw (Replaces: W10146346) |
|
$ 8.05 | |||||
| 9 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 10 | W11220387 | Burner, Oven (Replaces: W10650358) |
|
$ 198.58 | |||||
| 11 | W10837731 | Screw (Replaces: W10493726) |
|
$ 8.30 | |||||
| 12 | W11620523 | Harness, Switch (Replaces: W11562246) |
|
- | |||||
| 13 | WP98014893 | Valve, Oven (Replaces: 98014893) |
|
$ 165.35 | |||||
| 14 | W11684515 | Tubing (regulator To Oven Valve) (Replaces: W10512963) |
|
- | |||||
| 15 | W11620105 | Valve, Saddle (Replaces: W11509554) |
|
- | |||||
| 16 | 98017517 | Screw |
|
- | |||||
| 17 | W11509619 | Manifold, Assembly |
|
- | |||||
| 18 | W11676351 | Screw (Replaces: 98005659) |
|
- | |||||
| 19 | W11346659 | Regulator (Replaces: W10633327) |
|
$ 279.18 | |||||
| 20 | W11715913 | Bracket, Surface Burner (Replaces: W10122103) |
|
- | |||||
| 21 | W11590294 | Igniter, Hot Surface (Replaces: W11506321) |
|
- | |||||
| 22 | W11615438 | Bracket, Valve |
|
- | |||||
| 23 | W11688795 | Electrode (black) (Replaces: W11467380) |
|
- | |||||
| 24 | W10610297 | Nut |
|
- | |||||
| W11509769 | Valve, Saddle |
|
- | ||||||
| W11688762 | Clip, Ignitor (Replaces: W10822899) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W11167099 | Tubing, Assembly (Replaces: W10514424) |
|
$ 31.16 | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARICAB9F47C830E6BE5278A9EA8C567F489 | (left Front, Left, Rear, Right Front) |
|
- | ||||||
| W11620713 | Kit, Lp Conversion (Replaces: W11557686) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W10622750 | Cable, Spark (black) |
|
- | ||||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| W11688763 | Electrode (natural) (Replaces: W11467378) |
|
- | ||||||
| ARI8BA1041AC6AFBF0397E9F97260C1AB0A | (right Rear, Left Rear) |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W10861724 | Tubing, Assembly (Replaces: W10512771) |
|
- |
