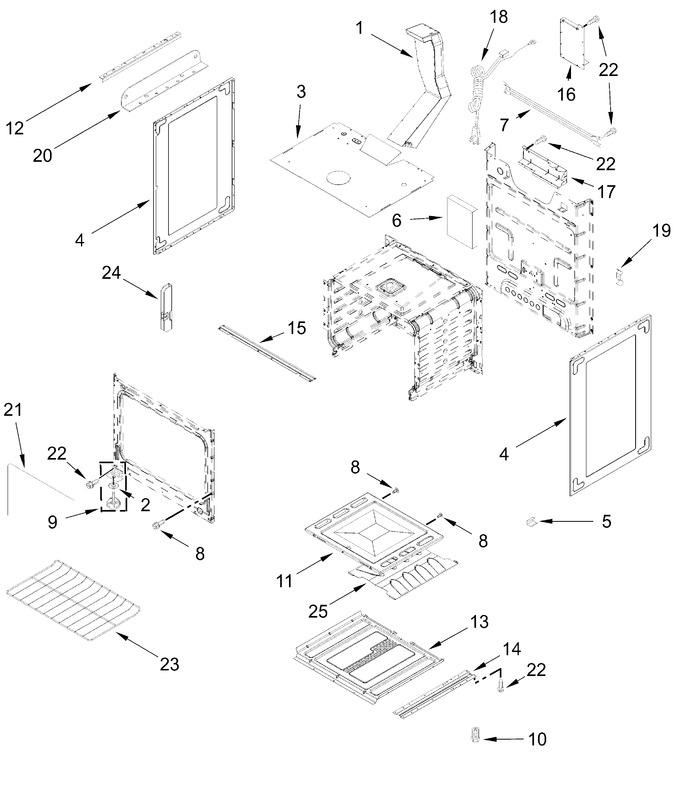

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10675411		Box, Flue		Appelez-nous	-
2	98007193		Spacer				$ 10.38
3	W11319572		Shield, Insulation   (Replaces: W10164110)		Appelez-nous	-
4	W10816993		Panel, Side (black, Left)   (Replaces: W10666212)		Appelez-nous	-
5	98005502		Clip, Oven Botton				$ 14.11
6	W11173320		Counterweight   (Replaces: W10902689)		Appelez-nous	-
7	98015363		Support, Rear				$ 85.97
8	WP98008545		Screw (black)   (Replaces: 98008545)				$ 18.60
9	W10819918		Foot Leveling Assembly (front)   (Replaces: W10650383)		Appelez-nous	-
10	WPW10058460		Foot, Leveling (rear)   (Replaces: W10058460)			Immediately	$ 8.24
11	W11688761		Oven Bottom, Assembly   (Replaces: W11568988)		Appelez-nous	-
12	W10577312		Support, Side Panel		Appelez-nous	-
13	W10670197		Deflector, Oven		Appelez-nous	-
14	W10520269		Rail, Base		Appelez-nous	-
15	W10545322		Bracket, Manifold		Appelez-nous	-
16	W11492823		Cover		Appelez-nous	-
17	W10549293		Safety Valve, Rear Cover		Appelez-nous	-
18	W11173616		Cord, Power   (Replaces: W10640762)		Appelez-nous	-
19	W11510655		Clip, Tubing		Appelez-nous	-
20	W10532560		Support, Side Panel		Appelez-nous	-
21	WPW10535778		Seal, Oven   (Replaces: W10535778)				$ 87.71
22	W10837731		Screw   (Replaces: W10493726)				$ 8.30
23	WPW10550642		Rack, Oven   (Replaces: W10550642)				$ 110.82
24	W11161898		Hinge, Counter Support   (Replaces: W10327222)		Appelez-nous	-
25	W11688713		Spread, Flame (bake)   (Replaces: W11579393)		Appelez-nous	-
	ARI968416391D3D0BEF160EE976C78A1C6C		(black And White Models)		Appelez-nous	-
	W11688850		Insulation, Upper   (Replaces: W10613818)		Appelez-nous	-
	W10537475		Insulation, Back   (Replaces: W11048974)		Appelez-nous	-
	98004294		Wire Tie, Insulation		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11492324		Insulation, Wrap		Appelez-nous	-
	W10816993		Panel, Side (black, Right)   (Replaces: W10666211)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
