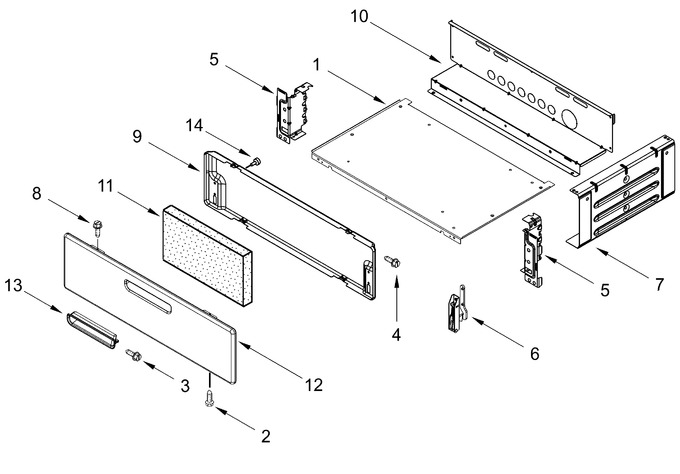

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11620318		Baffle, Base		Appelez-nous	-
2	W10119413		Screw		Appelez-nous	-
3	WP59002061		Screw   (Replaces: 98004993)				$ 8.18
4	W10155121		Screw		Appelez-nous	-
5	W10624273		Cover, Broiler (left)		Appelez-nous	-
6	W10647966		Hinge		Appelez-nous	-
7	W11841244		Panel, Side   (Replaces: W10605426)		Appelez-nous	-
8	WP3400832		Screw (black)   (Replaces: 98006726)			Immediately	$ 8.18
9	W10446851		Liner, Broiler Drawer		Appelez-nous	-
10	W10682676		Back Cover, Broiler		Appelez-nous	-
11	W11706803		Insulation, Broiler Door   (Replaces: W10216478)		Appelez-nous	-
12	W10874825		Broiler Door, Panel (black)		Appelez-nous	-
13	W10535809		Handle, Broiler Door (black)		Appelez-nous	-
14	98004052		Bumper, Door		Appelez-nous	-
	W10624275		Cover, Broiler (right)		Appelez-nous	-
