Chassis Parts (48 In)


Cooktop, Console, And Griddle Parts


Induction Module Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts

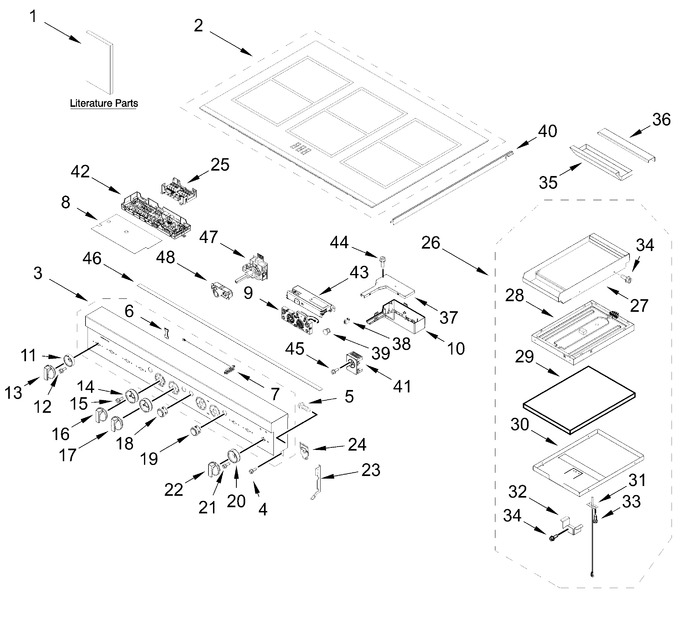

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11770810		Glass Cooktop Assembly   (Replaces: W11704338)		Appelez-nous	-
3	W11766926		Panel, Control   (Replaces: W11697568)		Appelez-nous	-
4	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
5	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
6	W11318856		Light Pipe Assembly   (Replaces: W10896369)				$ 109.35
7	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 228.92
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11766924		Interface, User   (Replaces: W11735695)		Appelez-nous	-
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11765168		Bezel, Cooktop (stainless)   (Replaces: W11699191)		Appelez-nous	-
12	W11765213		Screw   (Replaces: W11736176)				$ 29.86
13	W11765219		Knob, Cooktop (stainless)   (Replaces: W11709487)		Appelez-nous	-
14	W11317892		Bezel, Oven (stainless)   (Replaces: W11042375)				$ 110.74
15	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
16	W11317886		Knob, Oven Mode (stainless)   (Replaces: W10891869)				$ 327.75
17	W11317539		Knob, Oven Temperature (stainless)   (Replaces: W10891868)				$ 154.22
18	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
19	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
20	W11317890		Bezel, Griddle (stainless)   (Replaces: W11104967)				$ 109.56
21	W10674068		Screw				$ 24.39
22	W11317536		Knob, Griddle (stainless)   (Replaces: W10891923)				$ 148.63
23	W10130760		Bracket, Moving Console (left)				$ 75.94
24	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
25	W11766925		Manager, Appliance (expansion)   (Replaces: W11740607)		Appelez-nous	-
26	W11602621		Griddle Module Assembly   (Replaces: W11505236)			Immediately	$ 1,547.02
27	W11602622		Module, Griddle   (Replaces: W11360151)		Appelez-nous	-
28	W11319602		Element, Griddle   (Replaces: W10891698)				$ 369.48
29	W11319228		Insulation, Griddle   (Replaces: W11121383)		Appelez-nous	-
30	W11330430		Tray, Griddle Insulation		Appelez-nous	-
31	W11319618		Sensor, Griddle   (Replaces: W10891584)				$ 228.48
32	W11319226		Bracket, Griddle-rtd   (Replaces: W11121384)		Appelez-nous	-
33	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
34	W10162096		Screw				$ 21.90
35	W10276497		Tray, Griddle Drip				$ 404.03
36	W11766929		Trim, Rear Griddle   (Replaces: W11696498)		Appelez-nous	-
37	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
38	W10116114		Light, Indicator Housing			Immediately	$ 93.57
39	W10294500		Lens, Indicator Light				$ 7.69
40	W11766927		Trim, L-strip   (Replaces: W11690715)		Appelez-nous	-
41	W11318834		Control, Griddle   (Replaces: W11033497)				$ 356.52
42	W11766928		Manager, Appliance (powermax)   (Replaces: W11740605)		Appelez-nous	-
43	W11234290		Wifi Module Assembly   (Replaces: W11110768)				$ 179.89
44	7101P62460		Screw		Appelez-nous	-
45	7101P30960		Screw		Appelez-nous	-
46	W11766930		Gasket, Console   (Replaces: W11697609)		Appelez-nous	-
47	W11765221		Switch, Infinite   (Replaces: W11704441)			Immediately	$ 67.10
48	W11766154		Sleeve, Bezel   (Replaces: W11697214)		Appelez-nous	-
	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
	W11766932		Harness, Main (18 In)   (Replaces: W11729646)		Appelez-nous	-
	W11766931		Harness, Main (30 In)   (Replaces: W11729645)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11202265		Sheet, Tech		Appelez-nous	-
	W10130759		Bracket, Moving Console (right)				$ 75.94
	W11714372		Owner's Manual		Appelez-nous	-
	W11714373		Quick Start Guide		Appelez-nous	-
	W11184746		Guide, Internet Connectivity		Appelez-nous	-
	W11735605		Diagram, Wiring (cooktop)		Appelez-nous	-
	W11747773		Diagram, Wiring (oven)		Appelez-nous	-
	W11321066		Cord, Power   (Replaces: W11212216)				$ 118.94
	W11766172		Line Filter   (Replaces: W11733662)			Immediately	$ 182.07
	W11765166		Harness, User Interface Display   (Replaces: W11705029)		Appelez-nous	-
	W11317791		Harness, Wifi   (Replaces: W11242785)				$ 113.72
	W11317786		Harness, Communication   (Replaces: W11200318)			Immediately	$ 131.85
	W10780278		Harness, Door Lock			Immediately	$ 95.87
	W11766934		Harness, Console   (Replaces: W11702348)		Appelez-nous	-
	W11317787		Harness, Griddle   (Replaces: W10903727)				$ 116.76
