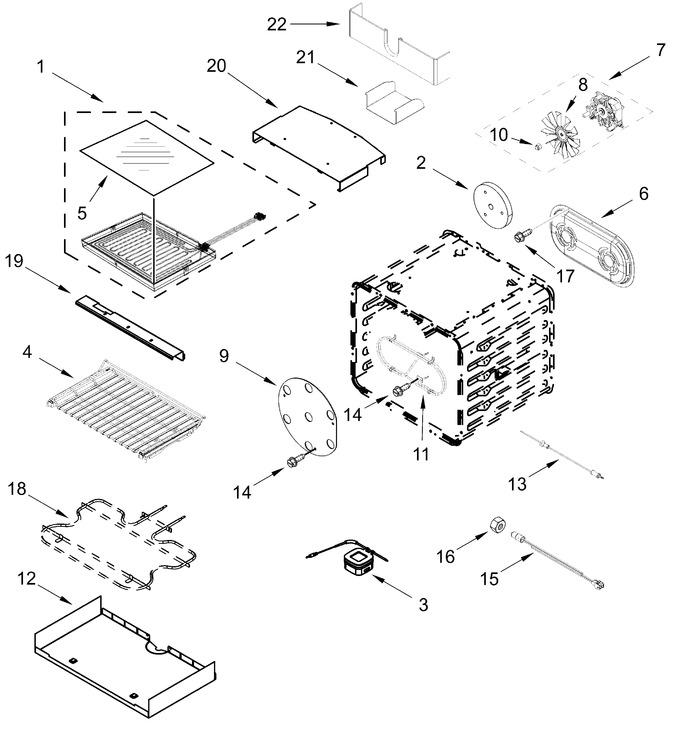

SELECT A DIAGRAM

Chassis Parts (48 In)


Cooktop, Console, And Griddle Parts


Induction Module Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11210530		Element, Broil				$ 542.44
2	W11688507		Insulation, Convection Cover   (Replaces: W10282821)			Immediately	$ 27.10
3	W11318341		Probe, Wireless Meat   (Replaces: W11186918)				$ 204.08
4	W11563568		Rack, Sliding Oven   (Replaces: W11491351)				$ 321.05
5	W11193191		Glass, Broil Element		Appelez-nous	-
6	W11232487		Baffle, Convection				$ 242.79
7	W11685616		Fan, Convection   (Replaces: W11121400)			Immediately	$ 269.61
8	W11320150		Blade, Fan   (Replaces: W11108376)				$ 342.64
9	W10261523		Plate, Fan				$ 77.85
10	W10794042		Nut, Acorn (left Hand Thread)   (Replaces: W10631504)				$ 13.14
11	W10116434		Element, Convection				$ 342.58
12	W11320540		Tray, Hidden Bake   (Replaces: W11109421)		Appelez-nous	-
13	W11765965		Probe, Temperature   (Replaces: W11734537)		Appelez-nous	-
14	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
15	W11766162		Jack, Meat Probe   (Replaces: W11734534)		Appelez-nous	-
16	WP9755546		Nut, Hidden   (Replaces: 9755546)				$ 7.30
17	W10739592		Screw		Appelez-nous	-
18	ARIF93179EB3F6CD1D1805E65CA61F82AAB		Element, Hidden Bake (not Serviced)		Appelez-nous	-
19	W11112336		Bracket, Broil Front		Appelez-nous	-
20	W11158843		Bracket, Broil Top		Appelez-nous	-
21	W11111391		Cover, Broil Terminal		Appelez-nous	-
22	W11170823		Cover Plate, Terminal Hole		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
