Chassis Parts (48 In)


Cooktop, Console, And Griddle Parts


Induction Module Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts

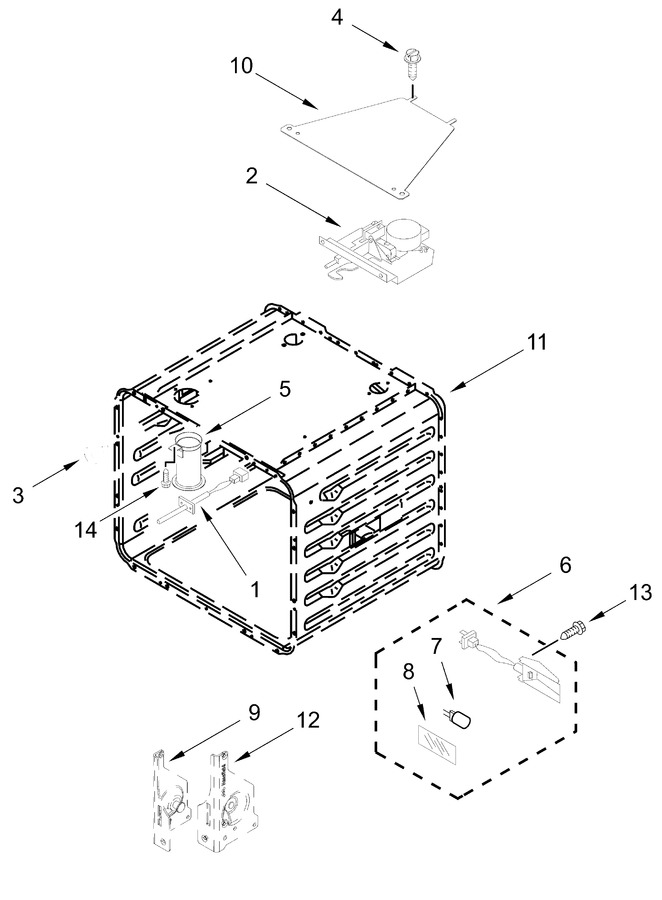

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
2	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 327.65
3	W10105790		Bumper (includes Screw)				$ 7.41
4	7101P42660		Screw		Appelez-nous	-
5	W10288078		Tube, Vent				$ 116.85
6	W11233684		Oven Light Assembly   (Replaces: W11223932)				$ 111.33
7	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
8	W10169756		Lens, Light				$ 42.19
9	W11096294		Receiver, Hinge (not Serviced)		Appelez-nous	-
10	W10160858		Cover, Latch				$ 76.94
11	ARID977495C9905E1411E0312A526DED125		Liner, Oven (not Serviced)		Appelez-nous	-
12	W11096293		Receiver, Hinge (not Serviced)		Appelez-nous	-
13	4449748		Screw				$ 14.23
14	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 8.36
	W11688563		Insulation, Back (18 In)   (Replaces: W11529898)		Appelez-nous	-
	W11688744		Insulation, Wrap (18 In)   (Replaces: W10282820)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
