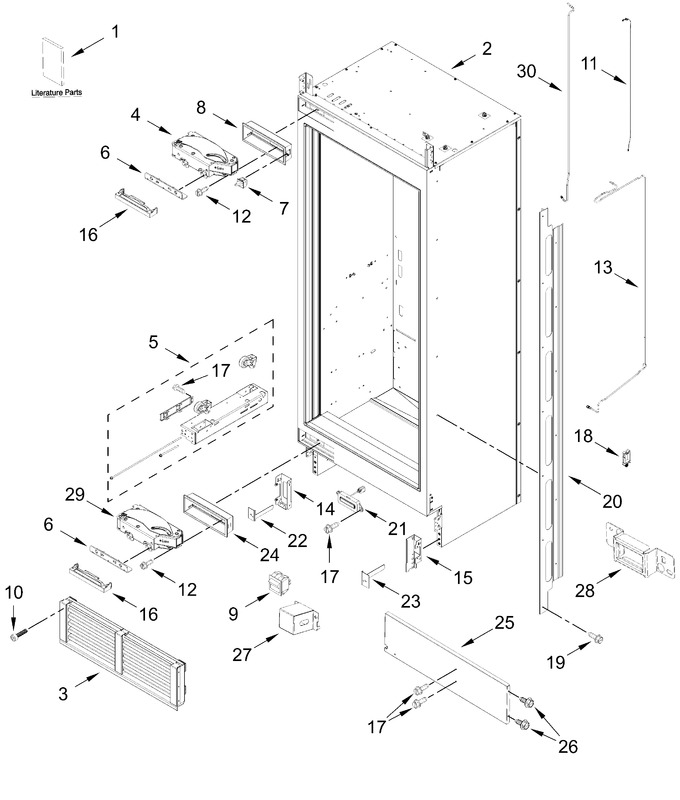

Cabinet Parts
Lower Unit And Tube Parts
Optional Parts
Refrigerator Door Parts
Refrigerator Liner Parts
Refrigerator Shelf Parts
Upper Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | ARI8576EDE2D568F203CA1E28095884C084 | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | W11245086 | Grille (charcoal Sparkle) (Replaces: W10823624) |
|
$ 412.79 | |||||
| 4 | W11233362 | Hinge, Top (charcoal Sparkle) (Replaces: W11036483) |
|
Immediately | $ 389.71 | ||||
| 5 | W11233365 | Base Assembly, Roller (left) (Replaces: W10761654) |
|
Immediately | $ 305.74 | ||||
| 6 | W11234860 | Bracket, Hinge Attach (Replaces: W10891495) |
|
- | |||||
| 7 | W11642199 | Switch, Light (Replaces: W11560149) |
|
$ 39.51 | |||||
| 8 | W11234282 | Trim, Hinge (charcoal Sparkle) (Replaces: W10900024) |
|
- | |||||
| 9 | W11623128 | Switch, Power Disconnect (Replaces: W11311927) |
|
$ 125.83 | |||||
| 10 | W11247538 | Screw (Replaces: W10882791) |
|
Immediately | $ 14.75 | ||||
| 11 | W10897083 | Harness, Antenna |
|
- | |||||
| 12 | W10678210 | Screw (black) |
|
$ 19.80 | |||||
| 13 | W11233369 | Tube, Water (also Order 2300868 - 5/16 In. Water Connector) (Replaces: W11227357) |
|
$ 132.27 | |||||
| 14 | W11028834 | Mount Assembly, Grille (left, Includes Nut) |
|
$ 85.05 | |||||
| 15 | W11028835 | Mount Assembly, Grille (right, Includes Nut) |
|
$ 97.05 | |||||
| 16 | W11235093 | Cover, Hinge Bracket (Replaces: W10895127) |
|
Immediately | $ 112.47 | ||||
| 17 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 22.22 | |||||
| 18 | W11233386 | Clip, Wire (Replaces: W10604160) |
|
- | |||||
| 19 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 20 | W11233378 | Trim, Cabinet Side (ebony, Non-hinge Side) (Replaces: W11111409) |
|
- | |||||
| 21 | W11234285 | Module, Wifi (Replaces: W10861217) |
|
$ 181.84 | |||||
| 22 | W10848725 | Adjustable Assembly, Toekick (left) |
|
$ 164.99 | |||||
| 23 | W10848724 | Adjustable Assembly, Toekick (right) |
|
- | |||||
| 24 | W11249239 | Trim, Hinge (charcoal Sparkle) (Replaces: W10900023) |
|
- | |||||
| 25 | W11618049 | Panel, Mc Rear (Replaces: W10772057) |
|
- | |||||
| 26 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 27 | W11415331 | Cover, Power Switch |
|
- | |||||
| 28 | W11356980 | Cover, Safety Switch |
|
- | |||||
| 29 | W11233372 | Hinge, Bottom (charcoal Sparkle) (Replaces: W11036493) |
|
$ 389.71 | |||||
| 30 | W11247672 | Tube, Filter Outlet Water (Replaces: W11047886) |
|
$ 128.01 | |||||
| W11257221 | Trim, Cabinet Side (ebony, Left) (Replaces: W11111408) |
|
Immediately | $ 237.99 | |||||
| W11644497 | Energy Guide |
|
- | ||||||
| W11362249 | Installation Instructions |
|
- | ||||||
| W11362242 | Tech Sheet |
|
- | ||||||
| W11233364 | Base Assembly, Roller (right) (Replaces: W10761653) |
|
Immediately | $ 305.83 | |||||
| W11362247 | Use And Care Guide |
|
- |
