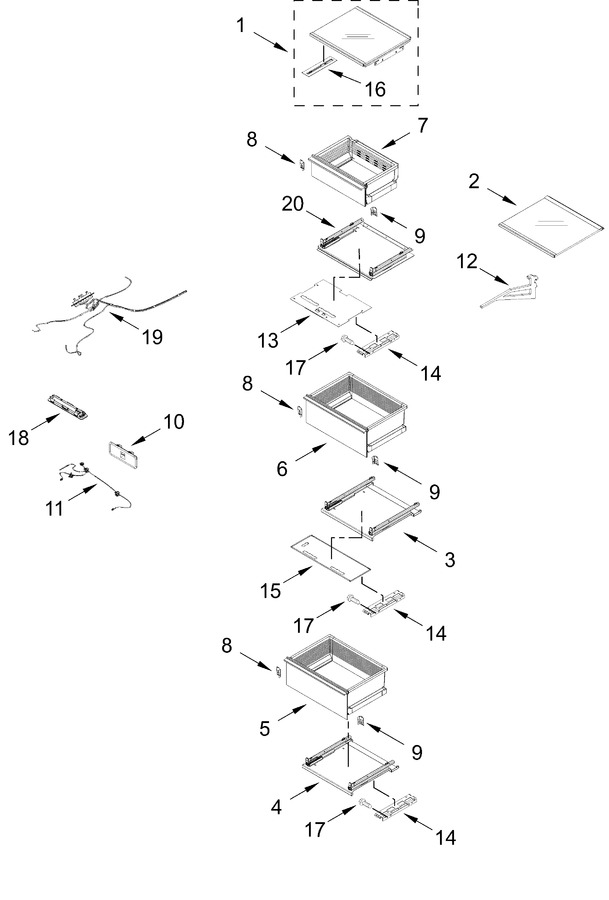

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11245156 | Cover Assembly, Deli (Replaces: W10824594) |
|
$ 461.49 | |||||
| 2 | W11245159 | Shelf Assembly (Replaces: W11032682) |
|
$ 292.91 | |||||
| 3 | W11245161 | Support Assembly, Upper Crisper Slide (Replaces: W10824120) |
|
- | |||||
| 4 | W11245184 | Support Assembly, Lower Crisper Slide (Replaces: W10821601) |
|
- | |||||
| 5 | W11249266 | Pan Assembly, Bottom Crisper (Replaces: W11022752) |
|
- | |||||
| 6 | W11249267 | Pan Assembly, Top Crisper (Replaces: W10816839) |
|
$ 349.27 | |||||
| 7 | W11245190 | Pan Assembly, Deli (Replaces: W10816762) |
|
- | |||||
| 8 | W11235126 | Retainer Clip (left) (Replaces: W10856559) |
|
- | |||||
| 9 | W11235128 | Retainer Clip (right) (Replaces: W10856558) |
|
- | |||||
| 10 | W11234857 | Housing, Crisper Thermistor (Replaces: W11047771) |
|
$ 246.30 | |||||
| 11 | W11234859 | Harness, Crisper Led (includes Thermistor) (Replaces: W10909590) |
|
$ 152.41 | |||||
| 12 | W11690161 | Sidearm, Shelf (Replaces: W10605575) |
|
Immediately | $ 51.64 | ||||
| 13 | W11775249 | Panel, Mullion (black) (Replaces: W11761901) |
|
- | |||||
| 14 | W11302039 | Bracket, Support (Replaces: W11045476) |
|
- | |||||
| 15 | W11300486 | Plate, Crisper Support Led (Replaces: W10902248) |
|
- | |||||
| 16 | W11265008 | Thermistor (includes Cover) |
|
Immediately | $ 129.80 | ||||
| 17 | W11247538 | Screw (Replaces: W10882791) |
|
Immediately | $ 14.75 | ||||
| 18 | W11233384 | Strip Assemby, Light (Replaces: W10914639) |
|
Immediately | $ 205.89 | ||||
| 19 | W10818566 | Harness, Mullion |
|
- | |||||
| 20 | W11245199 | Support Assembly, Deli Slide (Replaces: W10824233) |
|
- |
