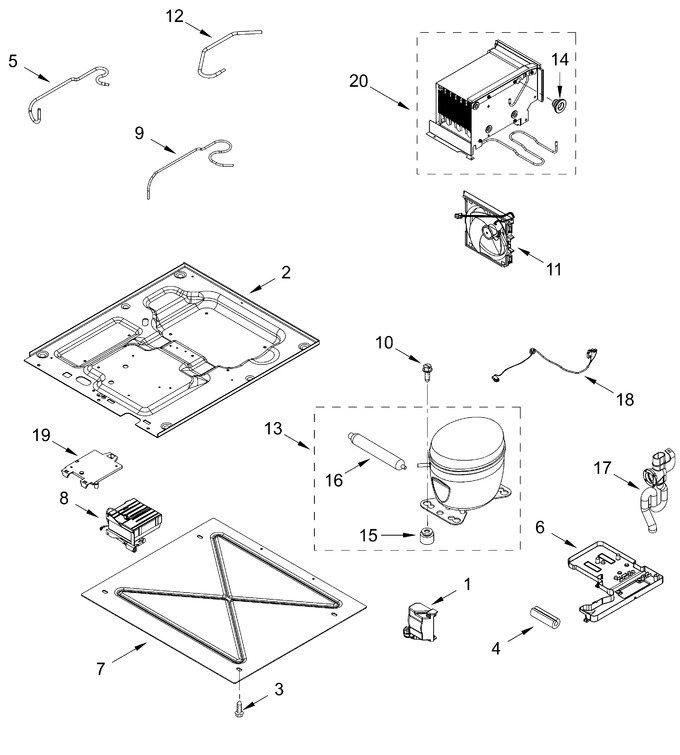

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11247667 | Cover Assembly, Compressor (Replaces: W11235263) |
|
$ 115.24 | |||||
| 2 | W11234853 | Base, Pan (Replaces: W10761666) |
|
- | |||||
| 3 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 22.22 | |||||
| 4 | W11233644 | Grommet, Evaporator Tray (Replaces: W10886557) |
|
- | |||||
| 5 | W11644177 | Tube, Suction (Replaces: W11495450) |
|
$ 68.10 | |||||
| 6 | W11234855 | Tray, Evaporator Drain (Replaces: W10801047) |
|
- | |||||
| 7 | W11234818 | Plate, Bottom (Replaces: W10834246) |
|
- | |||||
| 8 | W11642201 | Inverter Box Assembly (Replaces: W11346984) |
|
Immediately | $ 490.48 | ||||
| 9 | W11644175 | Tube, Discharge (Replaces: W11297133) |
|
$ 31.40 | |||||
| 10 | W11661574 | Screw (Replaces: 489473) |
|
$ 14.29 | |||||
| 11 | W11233637 | Shroud Assembly, Condenser Fan (Replaces: W10801052) |
|
Immediately | $ 315.38 | ||||
| 12 | W11646198 | Tube, Process (Replaces: W11517921) |
|
$ 39.81 | |||||
| 13 | W11557671 | Compressor (Replaces: W11332037) |
|
Immediately | $ 728.13 | ||||
| 14 | W10587113 | Mounting Grommet, Condenser |
|
- | |||||
| 15 | W11661108 | Mounting Grommet, Compressor (Replaces: 2183042) |
|
$ 15.21 | |||||
| 16 | W11109499 | Drier (service Drier Without Dye) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 17 | W11232777 | Tube Assembly, Drain (Replaces: W10781987) |
|
- | |||||
| 18 | W11644174 | Harness, Compressor (Replaces: W11411189) |
|
$ 31.59 | |||||
| 19 | W11233633 | Bracket, Inverter Mounting (Replaces: W10663674) |
|
- | |||||
| 20 | W11233634 | Condenser (includes Drain Pan Heater) (Replaces: W10762098) |
|
$ 332.69 | |||||
| ARIC14DE50D050CC38FEDB76E9F91CBFC41 | 43 Grams (r600a) |
|
- | ||||||
| ARIA203FEA88A0C0545C484B4E1C20B771B | Refrigerant Charge |
|
- | ||||||
| W11504416 | 8.5/6 Nr Ms 00 |
|
Immediately | $ 27.51 | |||||
| ARI3031A698A6B8030D731C976AE04824C1 | (high Pressure Side To Compressor) |
|
- | ||||||
| W11504421 | (8/5 Nr Ms 00) |
|
Immediately | $ 25.88 | |||||
| ARI169E995E2DAC0D79856EDDCD3C362715 | (suction Tube To Compressor) |
|
- | ||||||
| W11504415 | 8.5/8 Nr Ms 00 |
|
Immediately | $ 25.89 | |||||
| ARI500F2B538D318C1E3390E0716ECE69B7 | (also Order The Following Lokring⢠Parts) |
|
- | ||||||
| ARIDC3909E200058FAFA59ECDE3D8CD23DE | (suction Line To Condenser) |
|
- | ||||||
| W11506623 | 5 Nk Ms 00 |
|
Immediately | $ 22.00 | |||||
| ARIF479D1A0D17290EA712C859BF2E1C691 | (high Side To Condenser) |
|
- | ||||||
| ARI5DD2AEE280966FBC792DC043E4E4B750 | (capillary Tube To Drier) |
|
- | ||||||
| W11504447 | 5/1.8 Nr Ms 00 |
|
Immediately | $ 43.90 | |||||
| ARI365422773BD6741F2B56A197441A318E | (heat Loop To Drier) |
|
- | ||||||
| W11504445 | 5/4 Nr Ms 00 |
|
Immediately | $ 28.92 | |||||
| ARI8F052732CB60E39F6CA094A8168A5109 | (process Tube To Compressor) |
|
- |
