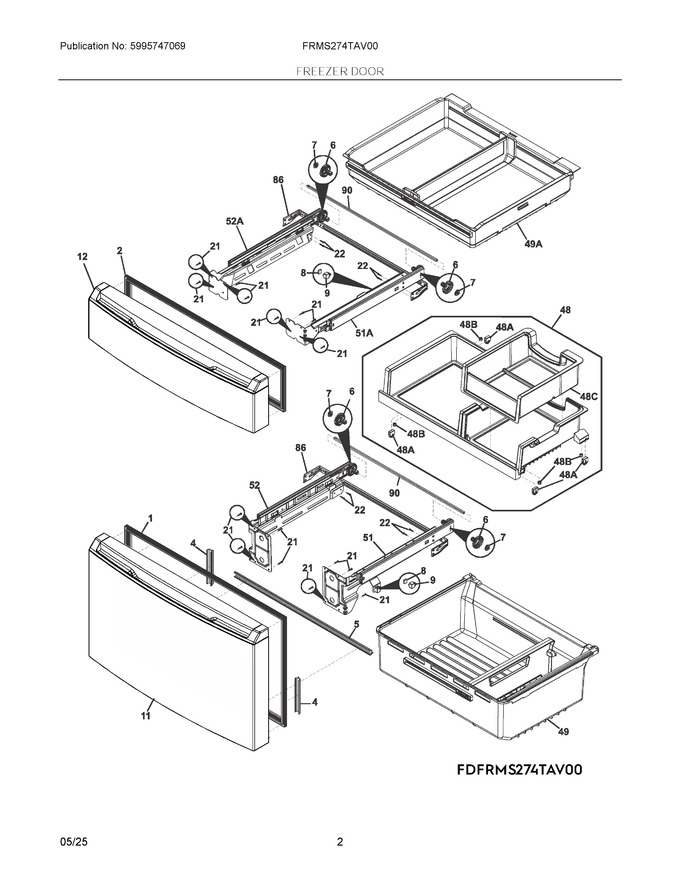

02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304519037		Gasket, Door, Freezer			Immediately	$ 59.46
2	5304519038		Gasket, Door, Middle				$ 65.38
4	5304538929		Gasket Assembly, Door, 103 Mm, Mid Side		Appelez-nous	-
5	5304519041		Gasket, Door, 754mm, Frz Bottom, Secondary			Immediately	$ 28.30
6	140025649017		Gear, Pinion   (Replaces: 140025649033)			Immediately	$ 5.09
7	5304519043		Bearing, Pad, Gear				$ 10.95
8	140026775019		Sensor, Magnet, Switch, Reed				$ 4.57
9	5304535665		Support, Magnet, White				$ 3.70
11	5304538928		Door Assembly, Outer, Stainless Steel, Freezer				$ 283.57
12	5304538936		Door Assembly, Outer, Stainless Steel, Middle Drawer				$ 245.55
21	811949401		Screw, Trilob, M5 X 16			Immediately	$ 5.90
22	5304519053		Screw, M3.5 X 6		Appelez-nous	-
48	5304534917		Drawer Assembly, Freezer, W/ice Container				$ 199.48
49	5304534911		Basket Assembly, Freezer Drawer, W/divider		Appelez-nous	-
51	5304534895		Slider, Assembly, Rh Freezer				$ 204.82
52	5304534894		Slider, Assembly, Lh Freezer			Immediately	$ 203.43
86	5304536612		Bracket, Reinforcement		Appelez-nous	-
90	5304524002		Shaft, Slider, Telescopic				$ 66.57
48A	5304519055		Roller, Drawer		Appelez-nous	-
48B	5304532074		Cushion, Rubber, Freezer Drw		Appelez-nous	-
48C	5304535271		Container, Drawer Ice, Freezer		Appelez-nous	-
49A	140207969019		Basket Assembly, Middle Drawer				$ 130.36
51A	5304534897		Slider, Assembly, Rh Middle Drw				$ 205.23
52A	5304534896		Slider, Assembly, Lh Middle Drw				$ 198.58
NI	241982136		Hanle Mtg Kit				$ 22.69
NIA	5304519084		Screw, Flange Pnhd Phl, 8g X 1/2		Appelez-nous	-
NIBA	811949503		Screw, Truss, 4.2 X 13				$ 3.37
