01 - Cover Sheet
02 - Freezer Door
03 - Refrigerator Door
04 - Cabinet
05 - Shelves
06 - Controls
07 - System
08 - Ice & Water Dispenser
09 - Ice Container
10 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

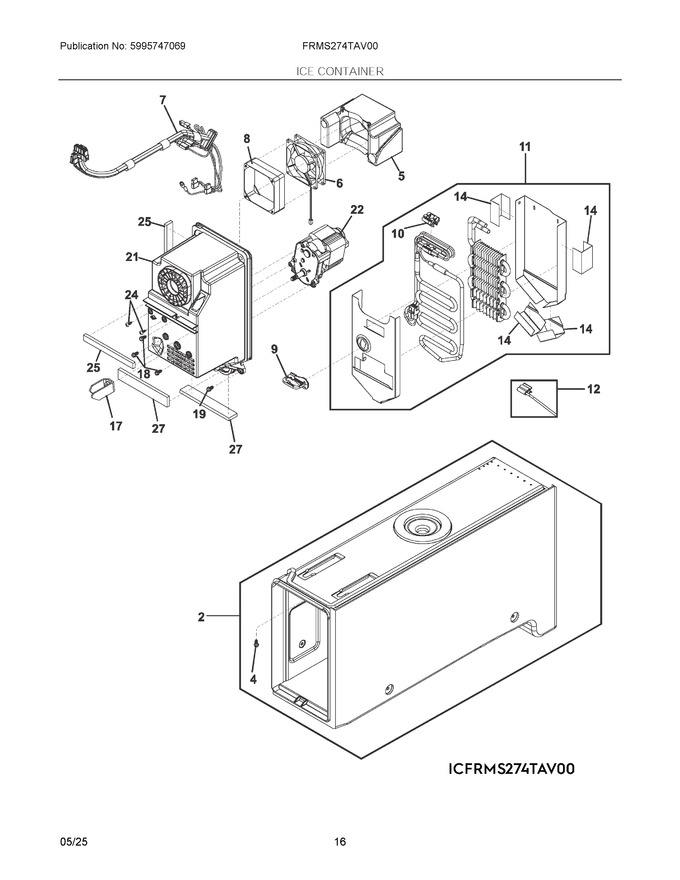

| 2 | 5304534891 | Housing Assembly, Ice Maker, W/gaskets |
|
$ 195.74 | |||||
| 4 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 5 | 5304523073 | Duct, Ice Maker Fan |
|
Immediately | $ 44.77 | ||||
| 7 | 5304538926 | Harness, Wiring, Air Hander |
|
- | |||||
| 8 | 5304508063 | Grommet, Fan |
|
Immediately | $ 17.69 | ||||
| 9 | 5304508037 | Connector, Harness, Evap Cover |
|
$ 16.01 | |||||
| 10 | 5304519629 | Clip, Heater/tubing |
|
$ 9.27 | |||||
| 11 | 140068083116 | Evaporator Assembly, Complete, Ice Maker (Replaces: 5304519630) |
|
Immediately | $ 106.42 | ||||
| 12 | 5303918645 | Thermistor Kit, Evaporator, W/connector |
|
Immediately | $ 94.00 | ||||
| 14 | 5304485759 | Tape, 3" X 1", Foil |
|
$ 0.79 | |||||
| 17 | 241829001 | Bar-drive |
|
Immediately | $ 65.05 | ||||
| 18 | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 14.96 | ||||
| 19 | 519088008 | Screw, Vt Af/2p, 5 X 16 |
|
- | |||||
| 21 | 5304534888 | Housing, Air Handler |
|
Immediately | $ 197.38 | ||||
| 22 | 5304534889 | Motor, Auger |
|
Immediately | $ 196.91 | ||||
| 24 | 218359202 | Screw, Pan Head, 8-32 X 0.250 |
|
$ 11.81 | |||||
| 25 | 5303918784 | Gasket-evap Housing, .250x.250x5.250 (Replaces: 242095404) |
|
Immediately | $ 136.39 | ||||
| 27 | 5304519211 | Gasket, Air Handler, Front |
|
$ 10.50 |
