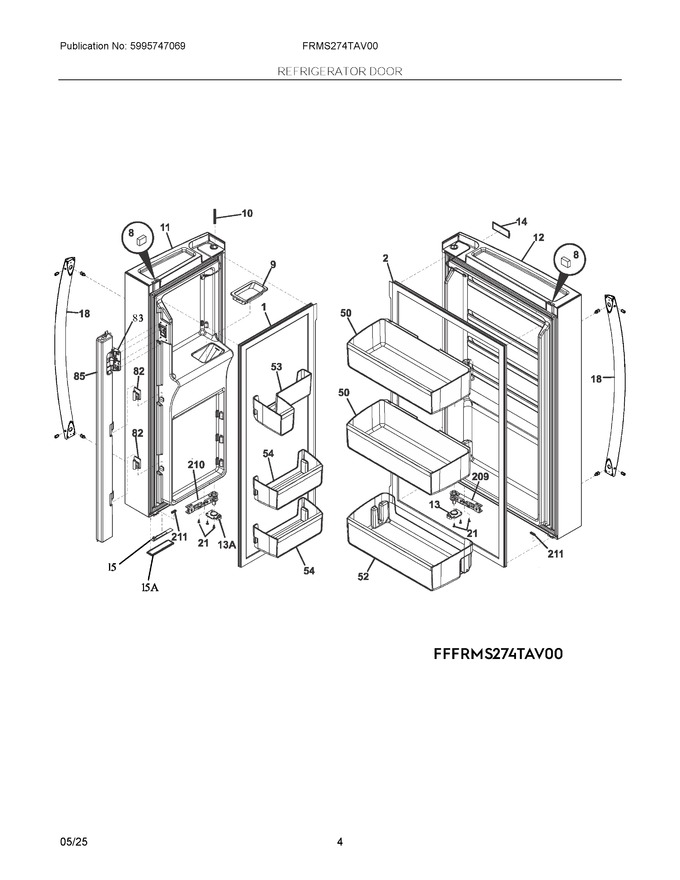

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529569		Gasket, Door, Lh Fresh Food				$ 210.81
2	5304529576		Gasket, Door, Rh Fresh Food				$ 212.38
9	5304526838		Frame, Ice Chute		Appelez-nous	-
10	5304519067		Spring, Tube Protection			Immediately	$ 11.80
11	140281015366		Door Assembly, Outer, Stainless Steel, Lh, Fresh Food		Appelez-nous	-
12	140281015374		Door Assembly, Outer, Stainless Steel, Rh		Appelez-nous	-
13	5304519070		Stop, Assembly, Rh Door				$ 16.01
14	5304511146		Badge, Frigidaire, Chrome			Immediately	$ 52.25
15	5304523011		Light Board, 3 Led Cluster, 6500k			Immediately	$ 54.28
18	5304531229		Handle, Door, Stainless, Fresh Food			Immediately	$ 170.10
21	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 19.01
50	5304538953		Bin, Flex, Full Width, Right Door		Appelez-nous	-
52	5304538952		Bin, Bottle, Bottom, Right Door		Appelez-nous	-
53	5304538951		Bin, Fixed, Ice Chute, Left Door, Small		Appelez-nous	-
54	5304538950		Bin, Lug-fixed, Lh Door		Appelez-nous	-
82	5304519080		Hinge, Flip Mullion, Bottom/middle			Immediately	$ 12.69
83	5304538938		Hinge, Flip Mullion, Upper		Appelez-nous	-
85	5304519081		Mullion Assembly, Flip, W/heater			Immediately	$ 176.51
209	140040569018		Closer Assembly, Door, Rh				$ 90.46
210	140040569026		Closer Assembly, Door, Lh				$ 90.41
211	5304519083		Bumper, Door, Bottom		Appelez-nous	-
13A	5304519071		Stop, Assembly, Lh Door				$ 16.07
15A	5304526839		Lens, Single Light, White			Immediately	$ 10.11
NI	241982136		Hanle Mtg Kit				$ 22.69
NI	5304532660		Alignment Kit, Door Adjustment		Appelez-nous	-
NIA	241641505		Screw, Hilo Phil Pn, .5", White		Appelez-nous	-
NIB	5304531674		Heater, Flip Mullion			Immediately	$ 156.90
