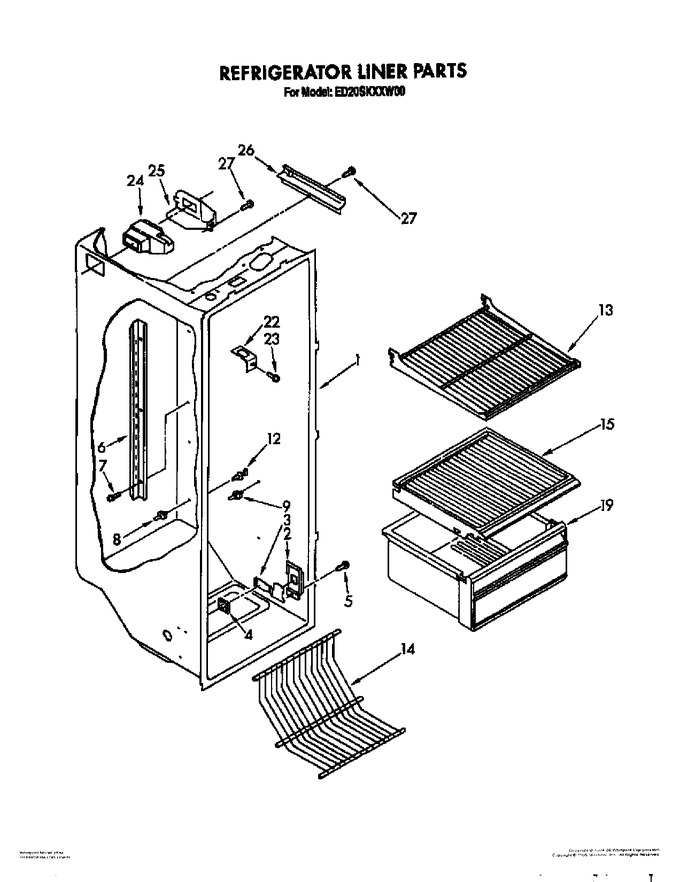

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	984101		Escutcheon, Meat Pan Control		Appelez-nous	-
3	984102		Slide, Meat Pan Control				$ 5.02
4	992358		Pad, Foam		Appelez-nous	-
5	WP489478		Screw, 8-15 X 1/2   (Replaces: 489242)				$ 7.75
6	1108433		Ladder, Shelf (2)		Appelez-nous	-
7	WP488729		Screw, 8 X 1/2 (6)   (Replaces: 487539)			Immediately	$ 7.79
8	4388538		Stud (4)   (Replaces: 1110718)			Immediately	$ 31.34
9	WP2149540		Stud (2)   (Replaces: 2149540)				$ 10.44
12	4388538		Stud   (Replaces: 2147997)			Immediately	$ 31.34
13	1118497		Shelf, Cantilever		Appelez-nous	-
14	2148280		Trivet		Appelez-nous	-
15	1128981		Crisper Cover		Appelez-nous	-
19	WP2148279		Pan, Crisper   (Replaces: 2148279)				$ 144.08
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 34.38
23	WP488488		Screw (2)   (Replaces: 489290)				$ 7.68
24	WPW10151374		Air Diffuser Assembly   (Replaces: 1121327)			Immediately	$ 99.78
25	2152019		Cover, Air Diffuser				$ 86.03
26	2150330		Cover, Conduit		Appelez-nous	-
27	W10759522		Screw   (Replaces: 486298)				$ 7.75

    View Diagram in Separate Window       Print Part List
