Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Liner (not A Serviceable Part) Appelez-nous -
2 944795 Hole Plug Appelez-nous -
3 WP941839 Hole, Plug   (Replaces: 941839) Special Order $ 8.03

4 1108436 Evaporator, Support Appelez-nous -
5 WP489478 Screw, 8 X 1/2   (Replaces: 489242) Special Order $ 8.18

6 655411 Hole Plug Appelez-nous -
7 946355 Support, Stud (16) Appelez-nous -
8 946356 Stud (5) Appelez-nous -
9 1106982 Stud (5) Appelez-nous -
10 1110779 Grommet (16) Appelez-nous -
11 4388538 Stud (4)   (Replaces: 1110718) In-Stock Immediately $ 32.85

12 1106979 Shelf Appelez-nous -
14 1106980 Shelf (2) Appelez-nous -
15 2148400 Trivet Appelez-nous -
20 1129915 Cover, Wiring Appelez-nous -
21 WP488729 Screw   (Replaces: 489176) In-Stock Immediately $ 8.28

22 942768 Fitting, Drain Appelez-nous -
26 2215823 Clip, Air Duct (2)   (Replaces: 842534) Special Order $ 10.94

28 WP841180A Ice Tray (2)   (Replaces: 841180) In-Stock Immediately $ 47.84


    View Diagram in Separate Window     Print Icon   Print Part List

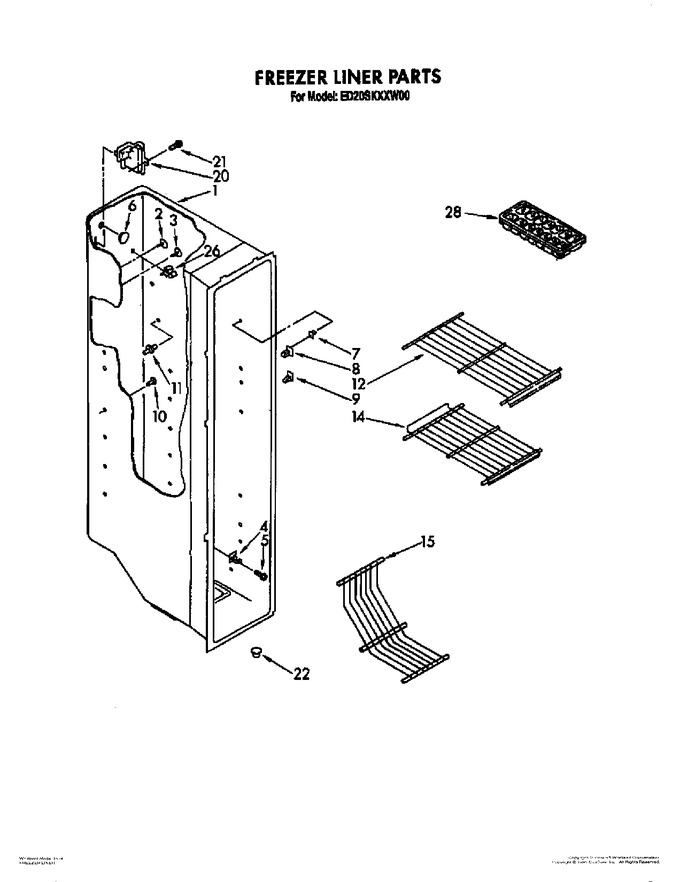

Diagram for ED20SKXXW00
