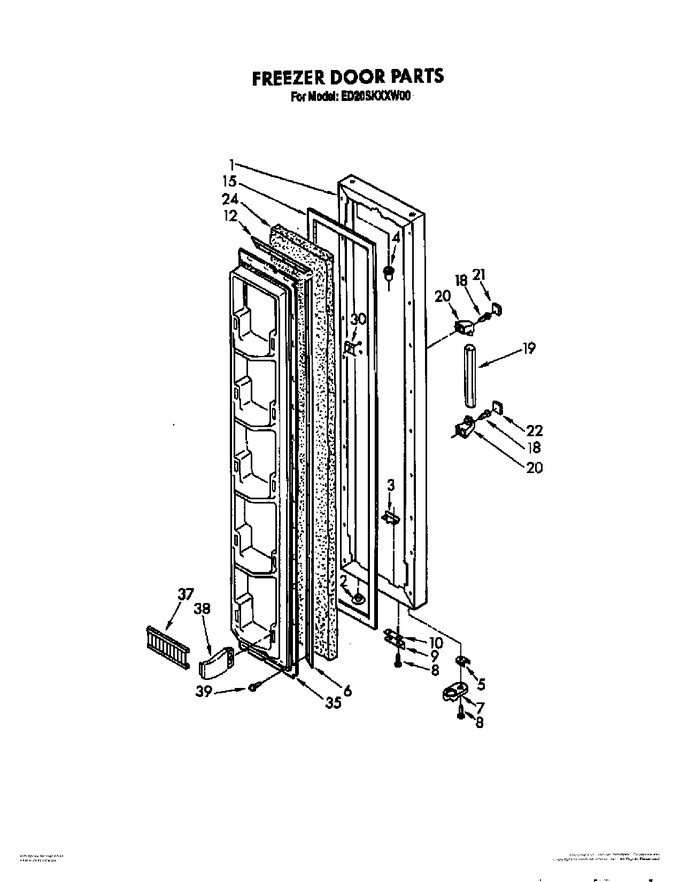

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2148288		Freezer, Door Panel (also Order Item 24)		Appelez-nous	-
2	534927		Hole Plug		Appelez-nous	-
3	988402		Tap Plate		Appelez-nous	-
4	509929		Cap, Hinge Sleeve		Appelez-nous	-
5	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
6	1117766		Gasket Retainer, Side (2)				$ 36.55
7	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 27.36
8	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
9	1115906		Bracket, Door Stop		Appelez-nous	-
10	988421		Shim		Appelez-nous	-
12	1117767		Gasket Retainer, Top & Bottom		Appelez-nous	-
15	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 351.08
18	488987		Screw, 8-15 X 1-5/8 (2)		Appelez-nous	-
19	1124592		Handle		Appelez-nous	-
20	1124591		End Cap (2)		Appelez-nous	-
21	1124593		Insert, Cover (top)		Appelez-nous	-
22	934724		Insert, Cover (bottom)		Appelez-nous	-
24	876029		Foam Insulation		Appelez-nous	-
30	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
35	1129241		Panel, Interior Door		Appelez-nous	-
37	2148291		Trim, Door Shelf (5)		Appelez-nous	-
38	WP2196100		Support Trim End (10)   (Replaces: 1110719)			Immediately	$ 8.66
39	WP489069		Screw, (28) 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
