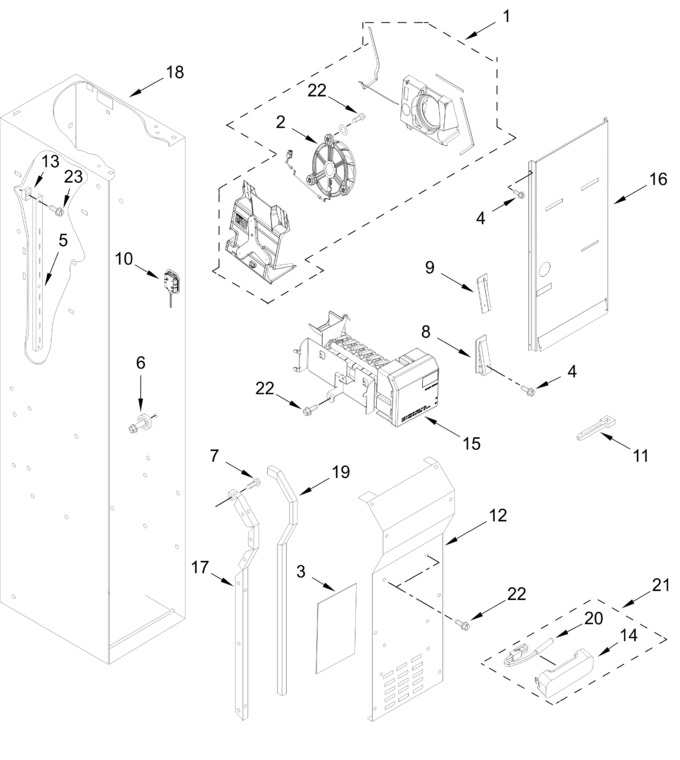

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11631623 | Fan Assembly, Evaporator (Replaces: W11437865) |
|
$ 327.40 | |||||
| 2 | W11618271 | Fan, Evaporator (Replaces: W11544700) |
|
Immediately | $ 232.03 | ||||
| 3 | W11747987 | Gasket, Fc Evaporator Bypass (Replaces: W11678119) |
|
- | |||||
| 4 | WP98008545 | Screw (black) (Replaces: W10308487) |
|
$ 18.60 | |||||
| 5 | W11625043 | Ladder, Shelf (Replaces: W11481390) |
|
- | |||||
| 6 | W11627395 | Stud Assembly, Shelf (includes Screw) (Replaces: W11445126) |
|
- | |||||
| 7 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 8 | W11447235 | Wedge, Air Duct (left Hand) |
|
- | |||||
| 9 | W11447234 | Wedge, Air Duct (right Hand) |
|
- | |||||
| 10 | W11484836 | Light Module, Led (Replaces: W11229041) |
|
Immediately | $ 27.01 | ||||
| 11 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 12 | W11756950 | Cover, Evaporator (Replaces: W11444465) |
|
- | |||||
| 13 | 520965 | Support, Ladder |
|
$ 31.35 | |||||
| 14 | W10609678 | Cover, Thermistor |
|
$ 39.19 | |||||
| 15 | W11744240 | Icemaker Assembly, Complete (Replaces: W11548750) |
|
Immediately | $ 420.47 | ||||
| 16 | W11410842 | Duct, Air |
|
- | |||||
| 17 | W11756941 | Rail, Evaporator Cover (left Hand) (Replaces: W11695307) |
|
- | |||||
| 18 | ARI5B043898161B9E887C9B86F7C890BB1B | Liner (not Serviced) |
|
- | |||||
| 19 | W11467833 | Gasket, Evaporator Cover |
|
- | |||||
| 20 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 21 | W11625042 | Thermistor Assembly (Replaces: W11550866) |
|
Immediately | $ 66.74 | ||||
| 22 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 23 | W10808291 | Screw |
|
- | |||||
| W11756942 | Rail, Evaporator Cover (right Hand) (Replaces: W11695308) |
|
- |
