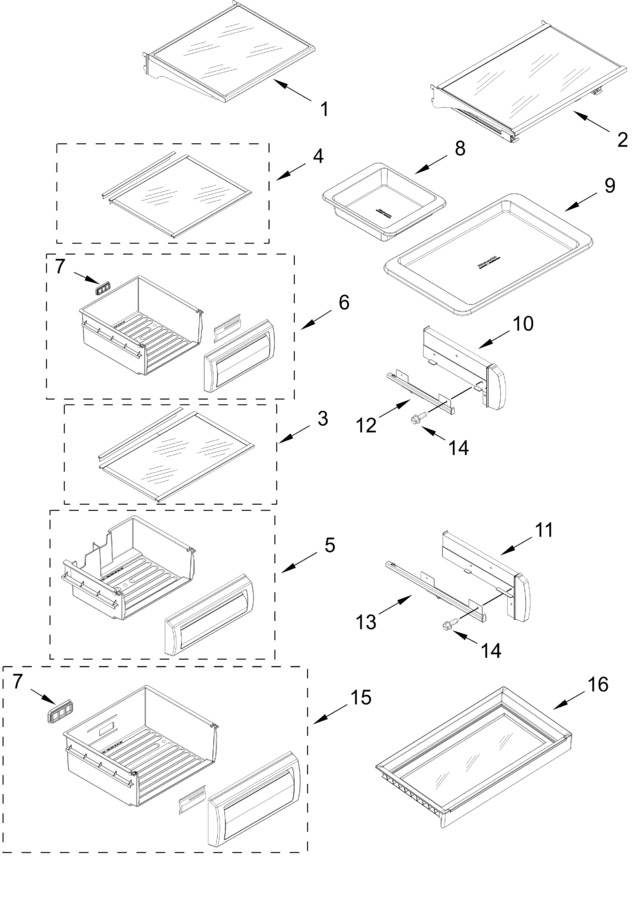

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11630863		Shelf Assembly, Fixed   (Replaces: W11410512)				$ 194.75
2	W11630864		Shelf Assembly, Bakeware   (Replaces: W11408074)				$ 361.92
3	W11630862		Pan Cover Assembly, Meat   (Replaces: W11441724)		Appelez-nous	-
4	W11630861		Pan Cover Assembly, Crisper   (Replaces: W11441726)		Appelez-nous	-
5	W11448427		Pan Assembly, Meat		Appelez-nous	-
6	W11755567		Pan Assembly, Crisper   (Replaces: W11740834)		Appelez-nous	-
7	2307810		Duct, Deli Pan		Appelez-nous	-
8	W11633366		Pan, Cake   (Replaces: W11522384)				$ 72.22
9	W11633367		Sheet, Baking   (Replaces: W11522386)				$ 70.51
10	W11410122		Spacer, Crisper Pan (left Hand)		Appelez-nous	-
11	W11410124		Spacer, Meat Pan (left Hand)		Appelez-nous	-
12	2302956		Slide, Crisper Pan (left Hand)				$ 298.73
13	W10844011		Slide, Meat Pan Closer (left Hand)				$ 320.20
14	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
15	W11755564		Pan Assembly, Cool Control Crisper   (Replaces: W11740830)		Appelez-nous	-
16	W11631250		Shelf Assembly, Platter   (Replaces: W11611418)				$ 414.64
	W10732727		Slide, Meat Pan Closer (right Hand)			Immediately	$ 342.94
	ARIFE26C32C0D260E4F0CD7D243D4292330		(left Hand)		Appelez-nous	-
	ARIF959192793ABCBAD1A31237D162F5226		(right Hand)		Appelez-nous	-
	W11410125		Spacer, Meat Pan (right Hand)		Appelez-nous	-
	2302957		Slide, Crisper Pan (right Hand)				$ 228.33
	W11830745		Screw   (Replaces: 8533929)		Appelez-nous	-
	W11410123		Spacer, Crisper Pan (right Hand)		Appelez-nous	-
