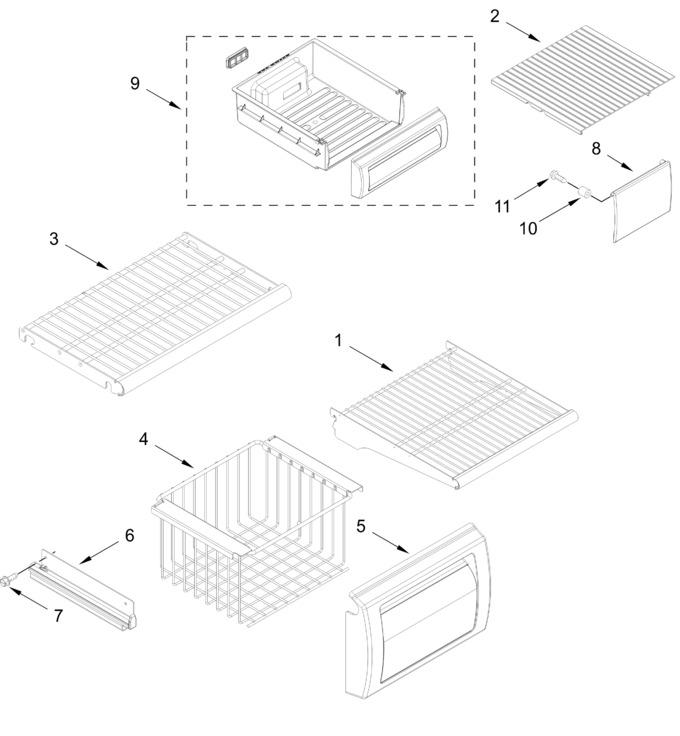

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11835597		Shelf, Wire   (Replaces: W11602368)		Appelez-nous	-
2	W11568087		Cover, Shelf		Appelez-nous	-
3	W11835596		Shelf, Fixed   (Replaces: W11603232)				$ 121.25
4	W11602365		Basket, Freezer		Appelez-nous	-
5	W11631251		Front, Freezer Basket   (Replaces: W11410139)				$ 198.93
6	WP2259318		Slide, Basket (left Hand)   (Replaces: 2259318)			Immediately	$ 317.35
7	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
8	W11631252		Door, Ice   (Replaces: W11567133)		Appelez-nous	-
9	W11410834		Bucket, Ice		Appelez-nous	-
10	W10785704		Spacer, Ice Door   (Replaces: W11445123)				$ 14.52
11	W11830745		Screw   (Replaces: 8533929)		Appelez-nous	-
	2259317		Slide, Basket (right Hand)				$ 233.29
