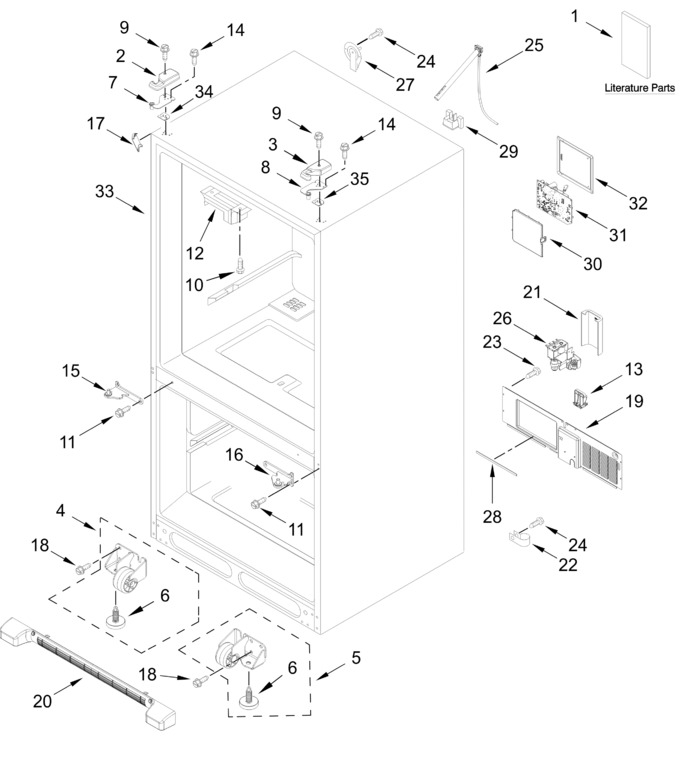

Cabinet Parts
Freezer Door Parts
Freezer Liner And Icemaker Parts
Optional Parts
Refrigerator Door Parts
Refrigerator Liner Parts
Shelf Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | WPW10337648 | Cover, Top Hinge (grey, Left Hand, Includes Foil) (Replaces: W10337648) |
|
$ 23.12 | |||||
| 3 | WPW10191117 | Cover, Top Hinge (grey, Right Hand) (Replaces: 12962302AP) |
|
$ 23.05 | |||||
| 4 | W11820444 | Roller Assembly (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 5 | W11820445 | Roller Assembly (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 7 | W11592375 | Hinge, Top (left Hand) (Replaces: W11456626) |
|
$ 31.92 | |||||
| 8 | W11592374 | Hinge, Top (right Hand) (Replaces: W11456625) |
|
Immediately | $ 31.90 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.72 | |||||
| 12 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 13 | W10528513 | Sweep, Dual Tube |
|
$ 43.74 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W11642008 | Hinge, Center (left Hand) (Replaces: W11610757) |
|
$ 24.35 | |||||
| 16 | W11642010 | Hinge, Center (right Hand) (Replaces: W11610758) |
|
$ 24.47 | |||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 18 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 19 | W10210980 | Cover, Unit |
|
$ 203.54 | |||||
| 20 | WPW10534160 | Grille, Toe (grey) (Replaces: W10534160) |
|
Immediately | $ 72.60 | ||||
| 21 | W10208593 | Guard, Dual Water Valve |
|
$ 15.71 | |||||
| 22 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 23 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 24 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 25 | W11817981 | Tube Assembly, Fill (includes Tubing, Fill Tube Elbow, Tube Insert And Clamp) (Replaces: W11046934) |
|
Immediately | $ 91.27 | ||||
| 26 | W11524655 | Valve, Water Inlet (Replaces: W11446816) |
|
Immediately | $ 118.72 | ||||
| 27 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 28 | W11534847 | Gasket, Unit Cover |
|
- | |||||
| 29 | W11686793 | Block, Fill Tube (Replaces: W11651067) |
|
$ 23.57 | |||||
| 30 | W11226688 | Lid, Hv Control Box (Replaces: W10296541) |
|
$ 85.16 | |||||
| 31 | WPW10317076 | Board, Hv Control (Replaces: W10317076) |
|
Immediately | $ 412.84 | ||||
| 32 | 12961602 | Cover, Control Box |
|
$ 116.19 | |||||
| 33 | ARI2948F547D7C4C1B6CA0878B04EDFC4EF | Cabinet (not A Servicable Part) |
|
- | |||||
| 34 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 99.53 | |||||
| 35 | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 100.60 | |||||
| W11580822 | Owners Manual |
|
- | ||||||
| W11623340 | Tech Sheet |
|
- | ||||||
| W11651386 | Energy Guide |
|
- |
