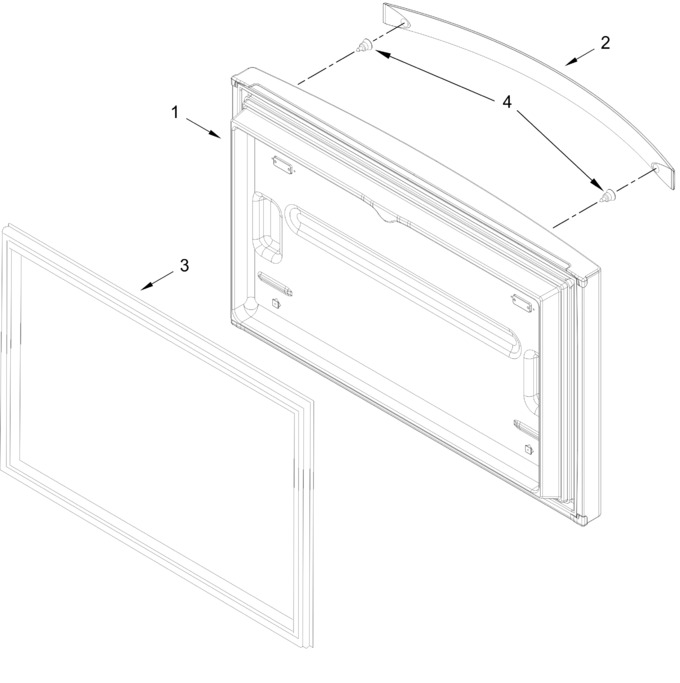

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11436983 | Freezer Door Assembly, Stainless (includes Door Gasket) (Replaces: W11377216) |
|
$ 879.93 | |||||
| 2 | W11129822 | Handle, Door (stainless) (Replaces: W11101976) |
|
$ 190.44 | |||||
| 3 | W10443316 | Gasket, Door (grey) |
|
Immediately | $ 242.57 | ||||
| 4 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 |
