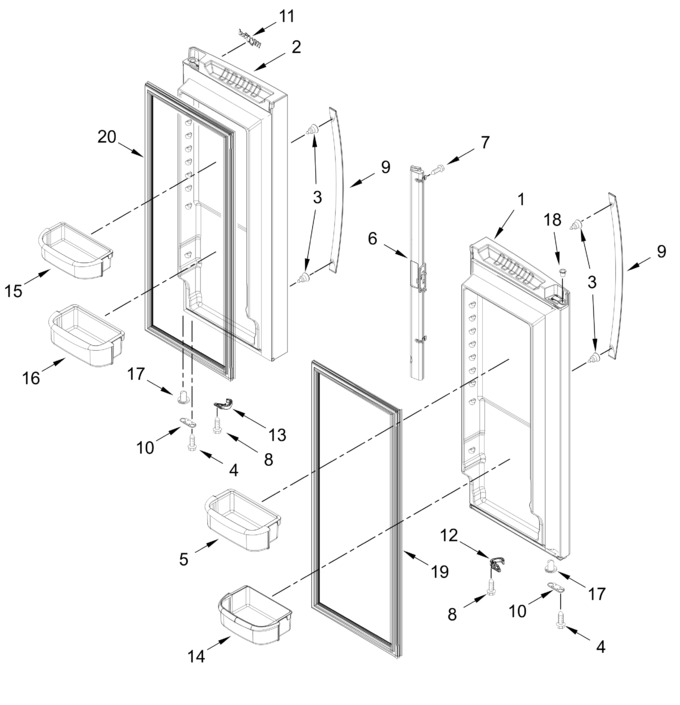

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11661556		Left Door Assembly, Stainless (includes Door Gasket)   (Replaces: W11622640)			Immediately	$ 1,074.12
2	W11436987		Right Door Assembly, Stainless (includes Door Gasket)   (Replaces: W11377212)				$ 880.22
3	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.45
4	WP98165		Screw   (Replaces: 12990504)				$ 8.57
5	WPW10351081		Bucket, Small   (Replaces: W10351081)			Immediately	$ 73.03
6	WP12722803AP		Mullion, Door (grey)   (Replaces: 12722803APN)			Immediately	$ 177.93
7	W11311945		Screw   (Replaces: 12990204)				$ 14.72
8	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
9	W11163764		Handle, Door (stainless)   (Replaces: W11045530)			Immediately	$ 151.77
10	W11703060		Stop, Door (grey)   (Replaces: 12968202AP)				$ 15.46
11	W11223753		Badge   (Replaces: W10884773)			Immediately	$ 87.26
12	W10918008		Latch, Door Closer (grey, Left Hand)   (Replaces: W10833741)				$ 17.64
13	W10918010		Latch, Door Closer (grey, Right Hand)   (Replaces: W10833739)			Immediately	$ 17.64
14	WP12918704		Bucket, Gallon (clear)   (Replaces: 12918704)			Immediately	$ 87.02
15	WPW10289497		Bucket, Gallon   (Replaces: W10289497)			Immediately	$ 81.09
16	WPW10371194		Bucket, Medium   (Replaces: W10371194)			Immediately	$ 77.23
17	WP12028505AP		Closer, Door (grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
18	12996601		Clip, Bushing				$ 10.05
19	W10830283		Gasket, Door (grey, Left Hand)				$ 205.44
20	W10830162		Gasket, Door (grey)			Immediately	$ 212.57
