Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI4741983F61CAC445F12C0C1FD1B613C1 Literature Parts Appelez-nous -
2 ARIF06CCFE9BD0F0FDB975806FEDA58D816 Cabinet (not Serviced) Appelez-nous -
3 2307584 Grommet, Crossover Tube Special Order $ 23.40

4 WPW10138054 Roller Assembly   (Replaces: W10138054) Special Order $ 45.34

5 W10860229 Base Assembly, Support (fc, Left Hand)   (Replaces: W10279275) Special Order $ 381.83

6 WP1163283 Screw   (Replaces: 1163283) Special Order $ 7.55

7 W10745694 Wire Assembly, Top Switch Jumper Special Order $ 125.60

8 W10782423 Locking Ring (1/4") Special Order $ 24.37

9 W10839844 Bracket, Grill Mounting   (Replaces: 2307640) Special Order $ 43.26

10 W10663352 Clip Special Order $ 21.91

11 W11474472 Screw   (Replaces: W10162602) In-Stock Immediately $ 8.63

12 W11690636 Waterline, Cust Connect   (Replaces: W10577944) Special Order $ 130.54

13 W11291510 Tube Assembly, Drain Special Order $ 76.97

14 2006841 Ring, Retainer Special Order $ 92.66

15 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 11.87

16 2005032 Leveler, Adjustable In-Stock Immediately $ 200.07

17 2318189 Tray, Filter Drip Special Order $ 148.73

18 W11791410 Hinge Assembly, Top (right Hand)   (Replaces: W11443676) Special Order $ 455.83

19 W11246413 Valve, Isolation (no Flow Washer)   (Replaces: W10578757) In-Stock Immediately $ 132.98

20 WP8533928 Screw   (Replaces: 8533928) In-Stock Immediately $ 8.26

21 2006617 Bracket, Base Support (rear) Appelez-nous -
22 2207470 Shim, Door Hinge In-Stock Immediately $ 52.27

23 WPW10121140 Housing, Water Filter   (Replaces: W10121140) In-Stock Immediately $ 171.96

24 W11356980 Cover, Safety Switch Appelez-nous -
25 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

26 W10121145 Filter, Water Appelez-nous -
27 2320559 Support, Valve Special Order $ 88.79

28 W11755873 Bracket, Filter   (Replaces: W11695780) Special Order $ 80.33

29 2005101 Hinge, Door Special Order $ 100.93

30 WP489464 Screw   (Replaces: W10001250) In-Stock Immediately $ 8.38

31 WP2260503B Button, Water Filter (black)   (Replaces: 2260503B) Special Order $ 76.42

32 WPW10188547 Skirt, Grille (black)   (Replaces: W10188547) In-Stock Immediately $ 165.28

33 WP489464 Screw   (Replaces: W10005050) In-Stock Immediately $ 8.38

34 W11739145 Grille, Bottom   (Replaces: W11695785) In-Stock Immediately $ 209.08

35 2215612 Cover, Air Duct Appelez-nous -
36 2001295 Screw, Door Stop Special Order $ 42.18

37 W11788118 Bracket, Rocker Switch (right Hand)   (Replaces: W11780475) Appelez-nous -
38 W11756944 Cover, Switch   (Replaces: W11695310) Appelez-nous -
39 W11238395 Cap, Water Filter (black)   (Replaces: W10797527) In-Stock Immediately $ 50.68

40 W11777487 Screw   (Replaces: W11757187) Special Order $ 29.86

41 W11291138 Switch, Rocker   (Replaces: W10847852) In-Stock Immediately $ 36.67

42 W10188434 Cover, Gap (bottom) Special Order $ 67.95

43 W11456069 Clamp, Tube   (Replaces: M0108107) In-Stock Immediately $ 22.40

44 2005433 Spacer, Door Skin (top) Special Order $ 23.33

45 WP9741232 Screw   (Replaces: 9741232) In-Stock Immediately $ 5.07

46 W11479397 Wire Assembly, Water Valve Special Order $ 78.74

47 WP2221240 Heater, Fill Tube   (Replaces: 2221240) Special Order $ 206.58

48 W10482373 Wire Assembly, Fill Tube Heater Special Order $ 125.10

49 W10619899 Tube, Filter Inlet Special Order $ 46.24

50 2317847 Tube Assembly, Water Inlet Special Order $ 86.35

51 WP1106508 Gasket, Seal   (Replaces: 1106508) In-Stock Immediately $ 10.43

52 W10635851 Tube, Filter Outlet Special Order $ 88.57

53 W11225845 Valve, Solenoid   (Replaces: W10574769) In-Stock Immediately $ 120.60

54 W10619291 Shield, Valve Electrical Appelez-nous -
55 WPW10141604 Screw   (Replaces: 487871) Special Order $ 8.85

W11511887 Wiring Diagram Appelez-nous -
W11767767 Owners Manual Appelez-nous -
W11761059 Energy Guide Appelez-nous -
W10782424 Locking Ring(5/16") Appelez-nous -
W11511885 Tech Sheet Appelez-nous -
W10860448 Base Assembly, Support (rc, Right Hand)   (Replaces: W10138423) In-Stock Immediately $ 383.00

W11776012 Installation Instructions Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

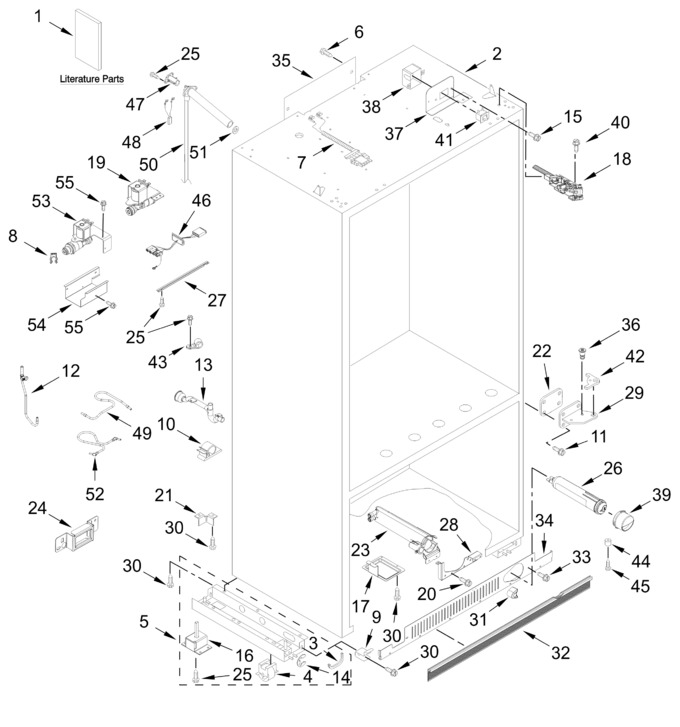

Diagram for KBBR336SPS00
