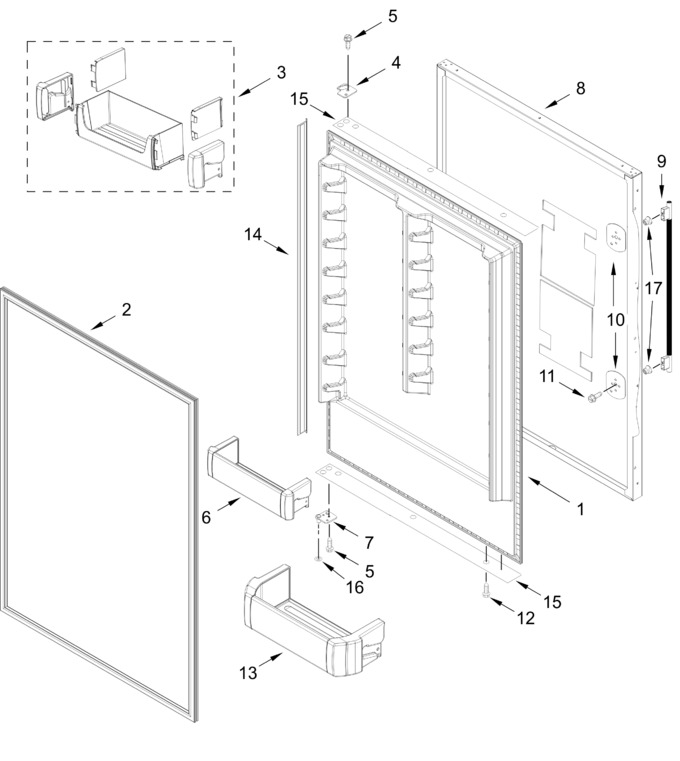

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10609631		Door, Refrigerator (stainless, Includes Door Gasket)		Appelez-nous	-
2	W10803136		Gasket, Door (grey)   (Replaces: W10609679)				$ 349.58
3	W11610616		Bin, Door (top)		Appelez-nous	-
4	W11673500		Spacer, Door Hinge   (Replaces: 2316804)			Immediately	$ 130.37
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	W10529547		Bin, Door		Appelez-nous	-
7	2316805		Hinge Assembly, Bottom (right Hand)				$ 214.92
8	W11818999		Skin, Rc Door (stainless)   (Replaces: W11737835)		Appelez-nous	-
9	W11784350		Handle, Door (stainless)   (Replaces: W11737006)			Immediately	$ 271.05
10	W10127710		Plate, Handle Door			Immediately	$ 25.94
11	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
12	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
13	W10529542		Bin, Gallon Door				$ 359.79
14	W10672076		Spacer, Door (side)		Appelez-nous	-
15	W10609682		Spacer, Door (top And Bottom)				$ 147.14
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
17	W11157086		Stud, Mounting   (Replaces: W11049903)			Immediately	$ 8.87
	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-
