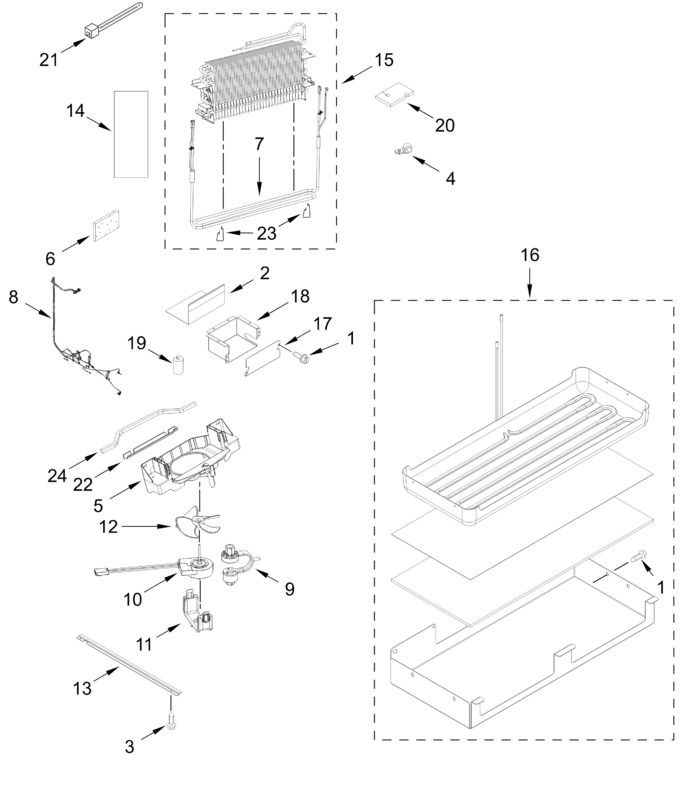

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
2	W10321050		Shelf, Wiring Cover		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.72
4	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 11.54
5	W10803566		Shroud, Evaporator Fan		Appelez-nous	-
6	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 14.77
7	W11311043		Heater, Defrost			Immediately	$ 263.94
8	ARI6928C9A7B79B46BFDA547159F062194D		Assembly, Freezer Wire (not Serviced)		Appelez-nous	-
9	W11676465		Grommet, Fan Motor   (Replaces: 12951101)			Immediately	$ 15.56
10	W11833137		Motor, Fan   (Replaces: W10556724)			Immediately	$ 119.39
11	W11712696		Clip, Fan Motor   (Replaces: 12956601)			Immediately	$ 12.24
12	WP2163777		Blade, Fan   (Replaces: 2200509)			Immediately	$ 107.61
13	2320554		Support, Drain Pan		Appelez-nous	-
14	W11556942		Gasket, Evaporator Bypass		Appelez-nous	-
15	W11649689		Evaporator And Heater Assembly   (Replaces: W11516439)				$ 403.14
16	W10890886		Shield Assembly, Drain Pan   (Replaces: W10735008)			Immediately	$ 371.48
17	W11756952		Cover, Wire Box   (Replaces: W11695782)		Appelez-nous	-
18	W11756953		Cover, Wiring Bottom   (Replaces: W11695781)		Appelez-nous	-
19	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 8.09
20	W11550598		Block, Evaporator Side		Appelez-nous	-
21	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 8.30
22	W10567169		Diverter, Air Shroud		Appelez-nous	-
23	W11538317		Clip, Defrost Heater		Appelez-nous	-
24	W10762685		Gasket, Foam		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
