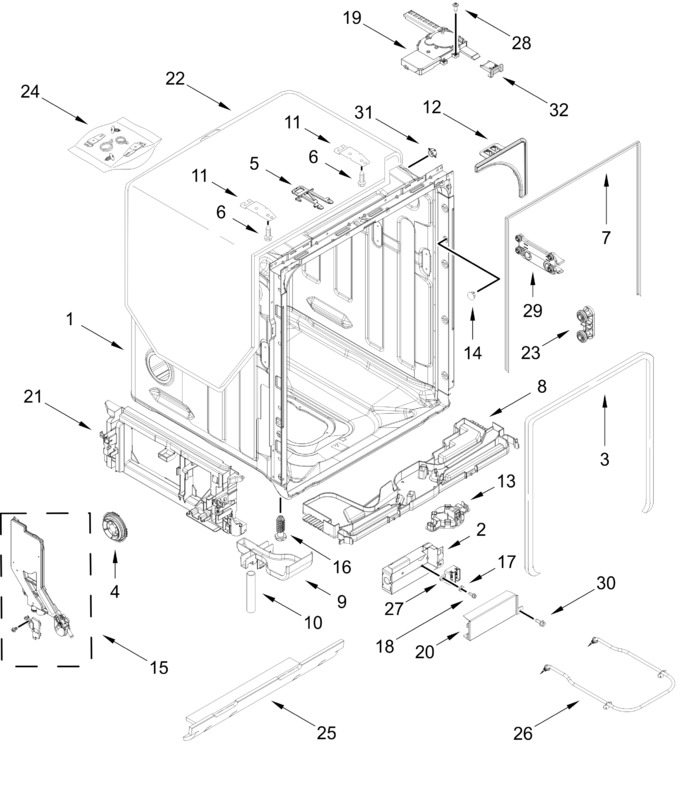

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11409866 | Tub Assembly (includes Gasket) (Replaces: W11120458) |
|
Immediately | $ 816.75 | ||||
| 2 | W11226744 | Base, Terminal Box |
|
Immediately | $ 30.68 | ||||
| 3 | W11768589 | Gasket, Tub (Replaces: W11683627) |
|
Immediately | $ 32.84 | ||||
| 4 | W11535081 | Nut, Water Inlet (Replaces: W11429974) |
|
Immediately | $ 13.18 | ||||
| 5 | W11545309 | Strike, Latch (Replaces: W11090487) |
|
Immediately | $ 15.51 | ||||
| 6 | W11551549 | Screw (Replaces: W11296374) |
|
$ 14.72 | |||||
| 7 | W11780203 | Seal, Cabinet (Replaces: W11753995) |
|
Immediately | $ 22.55 | ||||
| 8 | W11550169 | Drip Tray (Replaces: W11025993) |
|
Immediately | $ 44.05 | ||||
| 9 | W11025986 | Funnel, Overfill Protection |
|
$ 22.63 | |||||
| 10 | W11025988 | Funnel Extension |
|
Immediately | $ 28.35 | ||||
| 11 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 12 | W11579566 | Cover, Tub Corner (Replaces: W11165093) |
|
Immediately | $ 16.99 | ||||
| 13 | W11545764 | Float Switch (Replaces: W11255994) |
|
Immediately | $ 23.80 | ||||
| 14 | W11573757 | Plug, Tub (Replaces: W11184083) |
|
Immediately | $ 12.86 | ||||
| 15 | W11535094 | Water Inlet Assembly (Replaces: W11429970) |
|
Immediately | $ 123.10 | ||||
| 16 | W11561254 | Leg, Leveling (Replaces: W11455395) |
|
Immediately | $ 16.77 | ||||
| 17 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 11.81 | |||||
| 18 | WPW10277003 | Screw (Replaces: W10277003) |
|
$ 7.55 | |||||
| 19 | W11772451 | System, Door Opening (Replaces: W11725055) |
|
$ 149.29 | |||||
| 20 | W11407385 | Cover, Terminal Box (Replaces: W11226746) |
|
Immediately | $ 30.91 | ||||
| 21 | W11679658 | Side Support, Tub (left) (Replaces: W10920122) |
|
Immediately | $ 69.24 | ||||
| 22 | W11579564 | Shield, Tub Sound (Replaces: W11158115) |
|
Immediately | $ 57.56 | ||||
| 23 | W11614118 | Tub Mount, Upper Rack (Replaces: W11048217) |
|
Immediately | $ 23.45 | ||||
| 24 | W11780199 | Miscellaneous Parts Bag (contains 2 Screws, 2 Clamps, & 2 Brackets) (Replaces: W11770373) |
|
$ 29.90 | |||||
| 25 | W11393126 | Sound Insulation, Bottom |
|
$ 36.69 | |||||
| 26 | W11537778 | Heater Element Assembly (Replaces: W11536143) |
|
Immediately | $ 83.50 | ||||
| 27 | W11573809 | Terminal Block (Replaces: W11132441) |
|
Immediately | $ 30.63 | ||||
| 28 | W11772732 | Screw (Replaces: W11716258) |
|
- | |||||
| 29 | W11579562 | Tub Mount, Third Level Rack (left) (Replaces: W11094449) |
|
Immediately | $ 29.44 | ||||
| 30 | WP3400014 | Screw, Grounding (Replaces: 3400014) |
|
$ 8.24 | |||||
| 31 | W11545286 | Nut, Tub (Replaces: W10920244) |
|
Immediately | $ 15.48 | ||||
| 32 | W11772733 | Guide, Door Opening System (Replaces: W11697506) |
|
$ 25.68 | |||||
| W11596053 | Tub Mount, Third Level Rack (right) (Replaces: W11256437) |
|
Immediately | $ 114.65 | |||||
| W11679657 | Side Support, Tub (right) (Replaces: W10920120) |
|
Immediately | $ 69.39 |
