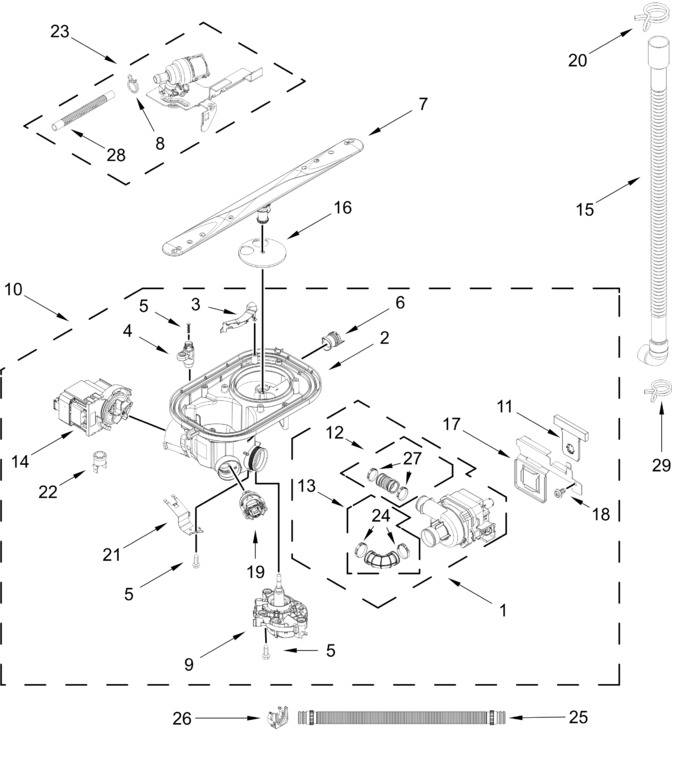

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11462455 | Pump Assembly (Replaces: W11048807) |
|
Immediately | $ 288.99 | ||||
| 2 | W11443105 | Sump With Seal (includes Inlet Diffuser, Drain Vent Assy, Screw, Check Valve Assy And Diverter Valve-motor) (Replaces: W11034554) |
|
$ 277.18 | |||||
| 3 | W10891543 | Diffuser, Inlet |
|
$ 28.01 | |||||
| 4 | W11050773 | Drain Vent Assembly |
|
$ 23.32 | |||||
| 5 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 6 | W11622925 | Check Valve, Drain (Replaces: W10891547) |
|
$ 19.25 | |||||
| 7 | W11814179 | Wash Arm Assembly (Replaces: W11048456) |
|
Immediately | $ 128.80 | ||||
| 8 | WP596669 | Clamp, Hose (Replaces: 371505) |
|
Immediately | $ 8.82 | ||||
| 9 | W11036111 | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 10 | W11460946 | Motor & Sump Assembly (Replaces: W11243648) |
|
Immediately | $ 369.71 | ||||
| 11 | W11036660 | Isolator, Rear Motor |
|
$ 33.60 | |||||
| 12 | W11419334 | Hose, Pressure (Replaces: W11250985) |
|
Immediately | $ 38.66 | ||||
| 13 | W11460960 | Hose, Suction (Replaces: W10900389) |
|
$ 74.30 | |||||
| 14 | W11462456 | Motor, Drain (Replaces: W11193157) |
|
Immediately | $ 59.07 | ||||
| 15 | W11414944 | Hose, Drain (Replaces: W11131184) |
|
Immediately | $ 31.02 | ||||
| 16 | W11580016 | Disc, Diverter (Replaces: W11175571) |
|
$ 16.91 | |||||
| 17 | W11497568 | Bracket, Rear Motor |
|
$ 33.53 | |||||
| 18 | W11104048 | Fastener (Replaces: W11418271) |
|
$ 30.03 | |||||
| 19 | W11410464 | Indicator, Optical Wash (Replaces: W11126174) |
|
Immediately | $ 30.22 | ||||
| 20 | WP285655 | Clamp, Hose (Replaces: 370445) |
|
Immediately | $ 8.81 | ||||
| 21 | W11163419 | Bracket, Thermostat |
|
- | |||||
| 22 | W11573758 | Thermostat (included With Main Wiring Harness) (Replaces: W11193089) |
|
Immediately | $ 13.57 | ||||
| 23 | W11434044 | Fill Valve Assembly (Replaces: W11025970) |
|
Immediately | $ 104.66 | ||||
| 24 | W10783615 | Clamp, Hose (Replaces: W11122851) |
|
Immediately | $ 18.60 | ||||
| 25 | W11614117 | Hose (Replaces: W11036159) |
|
Immediately | $ 32.43 | ||||
| 26 | W11596052 | Clip, Hose (Replaces: W11036143) |
|
Immediately | $ 23.24 | ||||
| 27 | W10783615 | Clamp, Hose (Replaces: W10466656) |
|
Immediately | $ 18.60 | ||||
| 28 | W11627534 | Hose, Inlet (Replaces: W11036287) |
|
Immediately | $ 23.30 | ||||
| 29 | W11545578 | Clamp, Hose (Replaces: W11236576) |
|
$ 24.77 |
