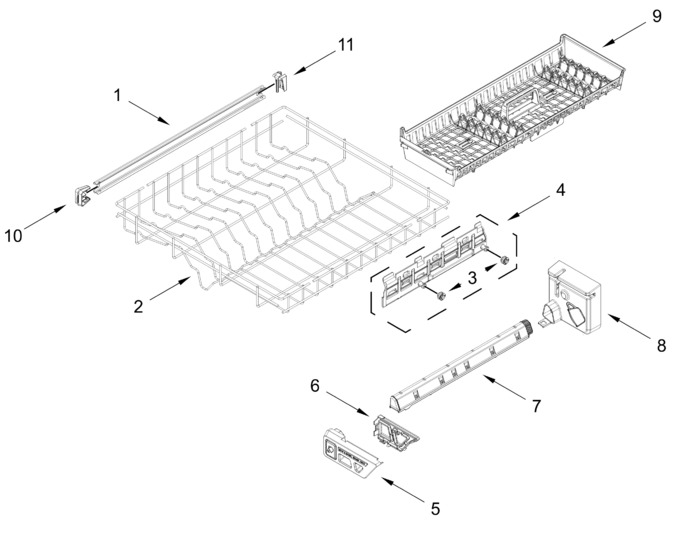

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11561204		Track, Dishrack   (Replaces: W11441109)			Immediately	$ 38.56
2	W11836631		Rack, Third Level   (Replaces: W11758646)		Appelez-nous	-
3	W11568789		Wheel   (Replaces: W11048219)			Immediately	$ 15.92
4	W11662340		Mount Assembly, Third Level (left)   (Replaces: W11231350)			Immediately	$ 24.73
5	W11783343		Manifold, Front   (Replaces: W11728599)		Appelez-nous	-
6	W11193057		Manifold, Rear				$ 32.99
7	W11175552		Tube, Wash				$ 123.45
8	W11175564		Manifold Assembly				$ 76.79
9	W11820595		Silverware Tray   (Replaces: W11087823)				$ 68.12
10	W11545307		Track Stop, Front   (Replaces: W11084874)			Immediately	$ 15.45
11	W11579392		Track Stop, Rear   (Replaces: W11084872)			Immediately	$ 20.41
	W11675848		Mount Assembly, Third Level (right)   (Replaces: W11231352)				$ 24.74
