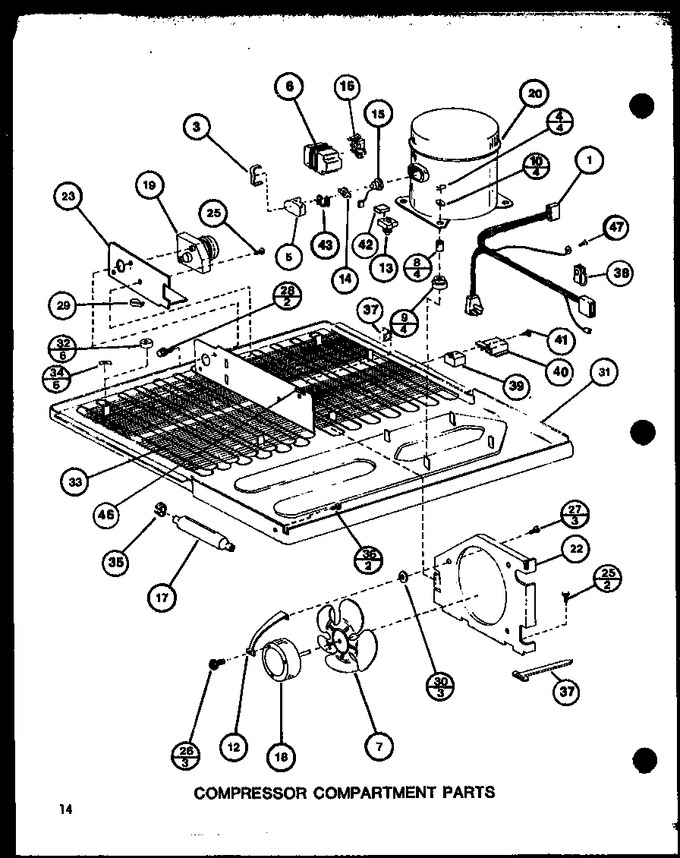

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7708501 | Harness Mc |
|
- | |||||
| 3 | A3041801 | Strap K |
|
- | |||||
| 4 | A3140801 | Clip K |
|
- | |||||
| 5 | B0551801 | Terminal Cover |
|
- | |||||
| 7 | B5742601 | Blade, Fan |
|
- | |||||
| 8 | A3072001 | Sleeve K |
|
- | |||||
| 9 | WPW10169124 | Grommet (Replaces: B8333401) |
|
$ 7.55 | |||||
| 10 | B8365302 | Washer |
|
- | |||||
| 12 | C8938501 | Bracket, Cond Motor |
|
- | |||||
| 13 | C3689202 | Relay K |
|
- | |||||
| 14 | C8916701 | Spring K |
|
- | |||||
| 15 | C3689105 | Overload |
|
- | |||||
| 17 | WPB2150504 | Drier (Replaces: B5715001) |
|
$ 136.98 | |||||
| 18 | 833697 | Motor, Fan (Replaces: D7584001) |
|
Immediately | $ 88.15 | ||||
| 19 | R0168027 | Kit, Defrost Timer (Replaces: D7004119) |
|
Immediately | $ 159.86 | ||||
| 20 | 30-FF10HBK1 | Compressor Aea1410axa (Replaces: D7672301) |
|
$ 833.75 | |||||
| 22 | D7691002 | Cond. Fan Shrd |
|
- | |||||
| 23 | D7690801 | Timer Bracket |
|
- | |||||
| 25 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 26 | M0220101 | Screw |
|
- | |||||
| 27 | M0221332 | Screw, Shoulder |
|
- | |||||
| 28 | M0218118 | Screw |
|
- | |||||
| 29 | M0321204 | Wire Tie |
|
- | |||||
| 30 | M0500107 | Grommet K |
|
- | |||||
| 31 | D7595404 | Base Pan, Machine Compartment |
|
- | |||||
| 32 | B8346301 | Spacer Cond. |
|
- | |||||
| 33 | D7657201 | Condenser Pntd |
|
- | |||||
| 34 | M0293703 | Speednut |
|
- | |||||
| 35 | M0104002 | Clamp-drier |
|
- | |||||
| 36 | M0233844 | Screw, T F |
|
- | |||||
| 37 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 38 | M0103901 | Clamp |
|
- | |||||
| 46 | A9008301 | Felt |
|
- | |||||
| 47 | M0253916 | Screw |
|
- | |||||
| NOTE: | Cic-4h/p76213-6w Used In Canada |
|
- |
