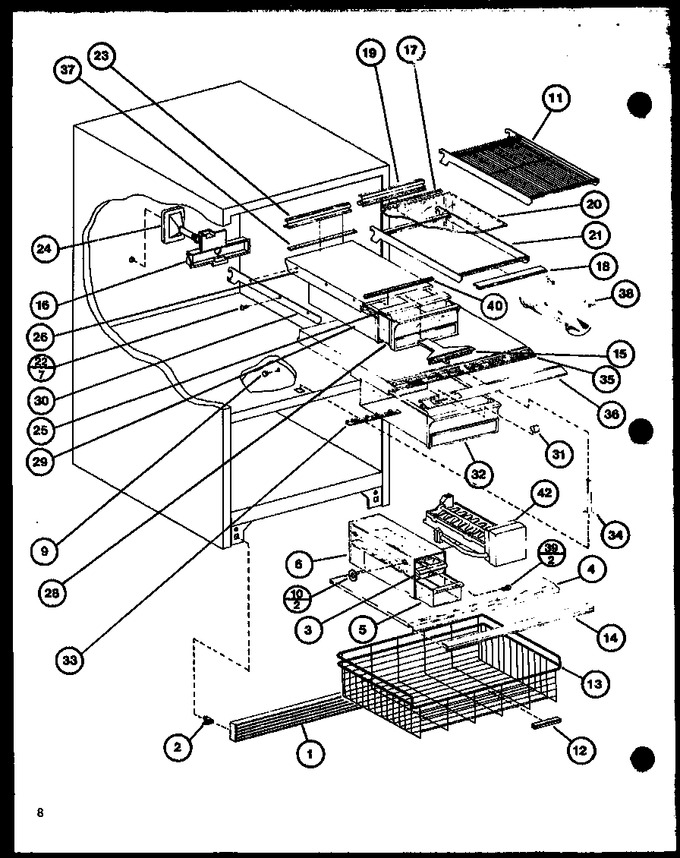

01 - Compressor Compartment Parts


02 - Fz Door Parts


03 - Page 3


04 - Page 4


05 - Page 5


06 - Rear Components


07 - Ref Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520502		Grille-toe		Appelez-nous	-
2	M0117301		Clip, Grille		Appelez-nous	-
3	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
4	D7681202		Shelf		Appelez-nous	-
5	D7620004		Ice Bin		Appelez-nous	-
6	D7620101		Rack, Ice Service		Appelez-nous	-
9	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 5.98
10	M0270508		Washer		Appelez-nous	-
12	B0571806		Handle Basket		Appelez-nous	-
13	D7677401		Basket Frz		Appelez-nous	-
14	C8832505		Trim Frz. Shelf		Appelez-nous	-
15	D7697902		M.k. Control Slide		Appelez-nous	-
16	D7698001		Housing Slide Mk		Appelez-nous	-
17	A3030336		Gasket-per Ea		Appelez-nous	-
18	C8913501		Trim, Shelf A		Appelez-nous	-
19	C8913601		Trim, Shelf		Appelez-nous	-
20	D7421220		Glass Shelf A		Appelez-nous	-
21	D7602303		Frame, Cantilever		Appelez-nous	-
22	M0213129		Screw		Appelez-nous	-
23	C8831808		Trim Shelf		Appelez-nous	-
24	D7701202		Grommet Mk		Appelez-nous	-
25	C8913505		Trim Shelf		Appelez-nous	-
26	D7698203		Top, Meat Keeper		Appelez-nous	-
28	D7698308		Pan, Meat		Appelez-nous	-
29	D7698101		Sleeve M.k		Appelez-nous	-
30	D7600030		Side Plate Mk		Appelez-nous	-
31	C8908301		Knob Humidity A-k		Appelez-nous	-
32	D7581011		Crisper Pan		Appelez-nous	-
33	D7587704		Slide Humidity		Appelez-nous	-
34	D7602202		Crisper Support Post		Appelez-nous	-
35	D7616501		Top, Crisper A-k		Appelez-nous	-
36	D7616607		Trim, Crisper Top A		Appelez-nous	-
37	M0275163		Tape Per Roll		Appelez-nous	-
38	D7547602		Rack, Bottle		Appelez-nous	-
39	M0219559		Screw		Appelez-nous	-
	NOTE:		Ic-3h/p76213-7w Used In U.s.a		Appelez-nous	-
NI	R0179078		Crisper Top Assy		Appelez-nous	-
NI	D7714602		Glass Shelf Assy		Appelez-nous	-
