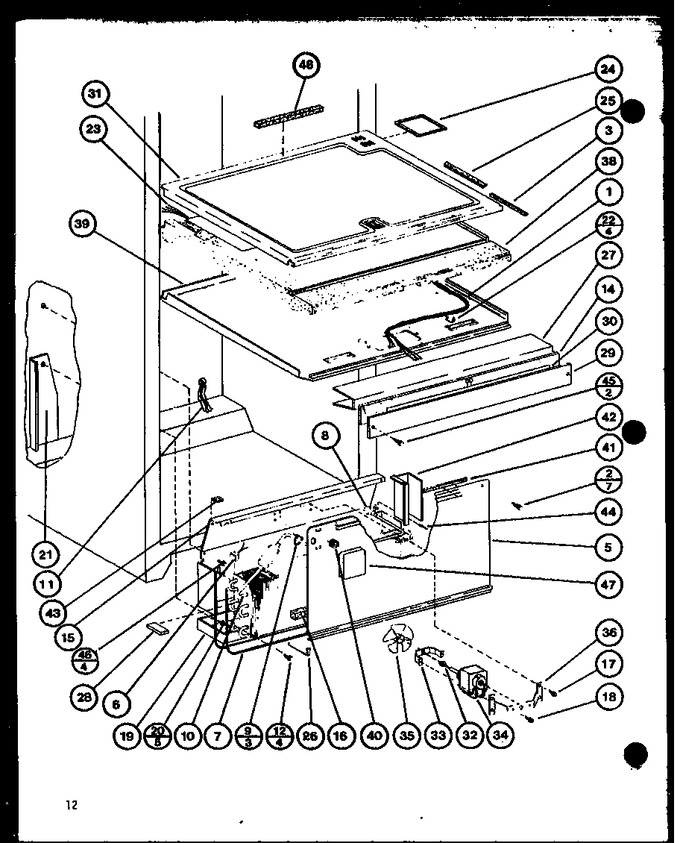

01 - Compressor Compartment Parts


02 - Fz Door Parts


03 - Page 3


04 - Page 4


05 - Page 5


06 - Rear Components


07 - Ref Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7711801		Harness Mullion		Appelez-nous	-
2	67006425		Screw   (Replaces: M0230917)			Immediately	$ 7.30
3	B5757703		Gasket, Air Block		Appelez-nous	-
5	D7677801		Cover, Evaporator		Appelez-nous	-
6	C8898603		Thermostat		Appelez-nous	-
7	D7718301		Heater Defrost		Appelez-nous	-
8	D7554902		Heat Exchanger		Appelez-nous	-
9	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
10	R0170020		Assy,low Side-thin Wall Evap		Appelez-nous	-
11	D7711701		Harness Liner		Appelez-nous	-
12	M0212932		Screw		Appelez-nous	-
14	876370		Insulation, Batt   (Replaces: B0523561)				$ 243.14
15	D7691104		Shroud Evap Fan		Appelez-nous	-
16	A3189320		Gasket, Foam		Appelez-nous	-
17	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
18	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
19	D7679401		Tray, Drip		Appelez-nous	-
20	WP489464		Screw A   (Replaces: M0236717)			Immediately	$ 8.38
21	C8953701		Barrier		Appelez-nous	-
22	A3195601		Clamp-wiring		Appelez-nous	-
23	D7685701		Heater Ref Bottom		Appelez-nous	-
24	A3030305		Gasket-per Ft		Appelez-nous	-
25	A3030308		Gasket		Appelez-nous	-
26	M0103502		Clamp		Appelez-nous	-
27	D7678401		Breaker, Center Mullion		Appelez-nous	-
28	B8373201		Block Evap Coil		Appelez-nous	-
29	C8842505		Center Mullion, Almond		Appelez-nous	-
29	C8842501		W Center Mull. -pnt		Appelez-nous	-
29	C8842502		Center Mullion		Appelez-nous	-
29	C8842503		Center Mullion		Appelez-nous	-
29	C8842504		Center Mullion		Appelez-nous	-
30	D7654503		Heater, Mullion		Appelez-nous	-
31	D7681701		Bottom Ref.		Appelez-nous	-
32	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 46.17
33	C8881301		Brkt Evap Fan		Appelez-nous	-
34	WPC8891605		Motor, Evap Fan   (Replaces: C8891601)				$ 344.82
35	C8927801		Blade, Evap Fan		Appelez-nous	-
36	D7524501		Brkt Evap Fan Shroud		Appelez-nous	-
38	D7713301		Block-waxed Ctr		Appelez-nous	-
39	D7681401		Top, Freezer		Appelez-nous	-
40	A3138301		Grommet		Appelez-nous	-
41	A3030336		Gasket-per Ea		Appelez-nous	-
42	D7680901		Duct, Returnair		Appelez-nous	-
43	B8358502		Gasket		Appelez-nous	-
44	A4539602		Pop Rivet		Appelez-nous	-
45	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
46	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
47	D7604903		Cover-fl Tb/plug		Appelez-nous	-
48	B5759616		Gasket		Appelez-nous	-
	NOTE:		Ic-3h/p76213-5w Used In U.s.		Appelez-nous	-
