Basket And Tub Parts
Console Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

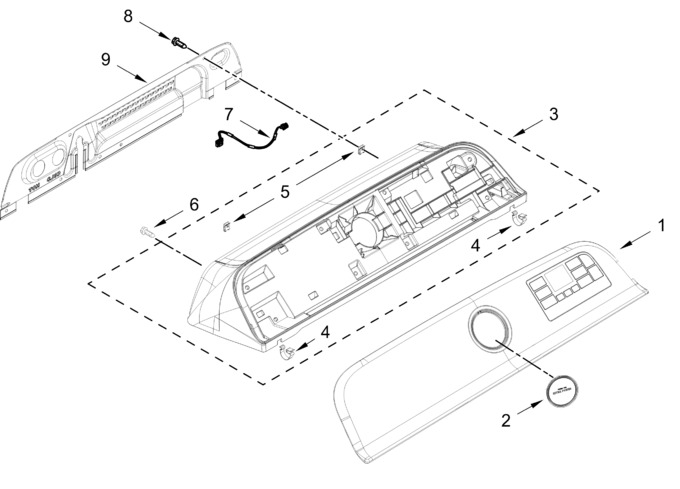

| 1 | W11798341 | Assembly, Fascia (Replaces: W11665812) |
|
Immediately | $ 440.60 | ||||
| 2 | W11754594 | Assembly, Knob |
|
- | |||||
| 3 | W11797451 | Assembly, Console (white) (Replaces: W11677918) |
|
$ 144.69 | |||||
| 4 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 5 | W11213336 | U-nut (Replaces: W10298336) |
|
$ 7.74 | |||||
| 6 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 7 | W11797453 | Harness, User Interface (hmi) (Replaces: W11600727) |
|
$ 288.37 | |||||
| 8 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.26 | |||||
| 9 | W11129559 | Panel, Console Rear |
|
$ 278.69 |
