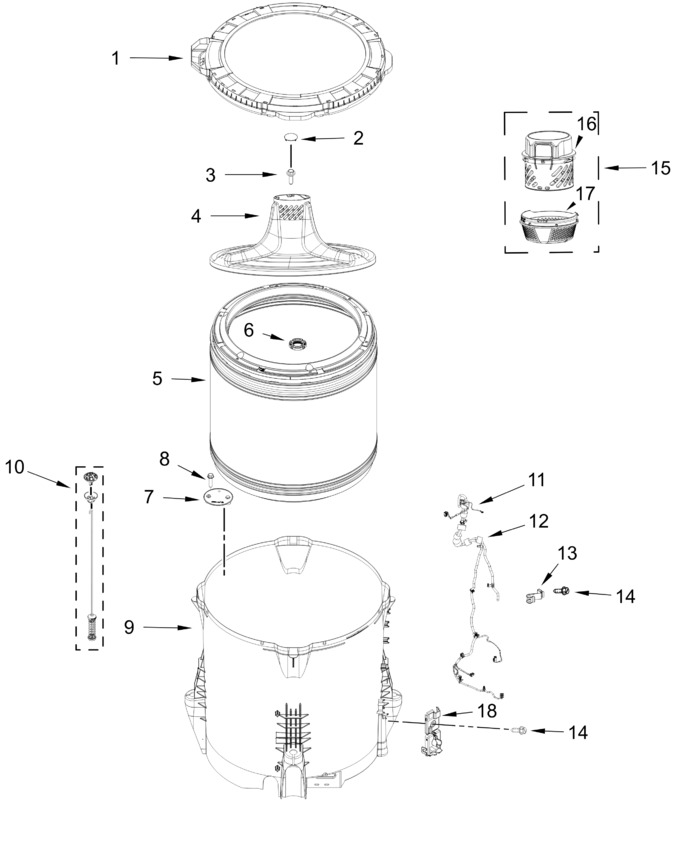

Basket And Tub Parts
Console Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11590590 | Tub Ring (Replaces: W11094304) |
|
Immediately | $ 141.03 | ||||
| 2 | W11795229 | Cap, Impeller (Replaces: W11683003) |
|
- | |||||
| 3 | W10752187 | Screw (Replaces: W10625252) |
|
Immediately | $ 8.13 | ||||
| 4 | W11795574 | Impeller (washplate) (Replaces: W11682555) |
|
$ 110.51 | |||||
| 5 | W11683010 | Assembly, Basket |
|
$ 330.97 | |||||
| 6 | W11551646 | Basket, Lock Nut (Replaces: W11183985) |
|
Immediately | $ 14.22 | ||||
| 7 | W11568797 | Drain Pump Filter (Replaces: W11089264) |
|
Immediately | $ 26.79 | ||||
| 8 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.82 | ||||
| 9 | W11219115 | Tub |
|
$ 368.66 | |||||
| 10 | W11400156 | Damper Assembly, Tub Suspension (set Of 4, Includes Suspension Bushings And Suspension Balls) (Replaces: W11187091) |
|
Immediately | $ 140.98 | ||||
| 11 | W11789510 | Harness, Lower (Replaces: W11600726) |
|
$ 199.12 | |||||
| 12 | WP353244 | Hose Pressure Switch (Replaces: 8572540) |
|
Immediately | $ 59.93 | ||||
| 13 | W11755726 | Clip, Harness (Replaces: W11284522) |
|
Immediately | $ 7.35 | ||||
| 14 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.00 | ||||
| 15 | W11795228 | Assembly, Filter (Replaces: W11681255) |
|
$ 57.26 | |||||
| 16 | W11795229 | Frame, Filter (Replaces: W11682994) |
|
- | |||||
| 17 | W11636601 | Cup, Filter (Replaces: W11553580) |
|
- | |||||
| 18 | W11805174 | Sensor, Displacement (Replaces: W11692787) |
|
$ 110.73 |
