New Model Search:

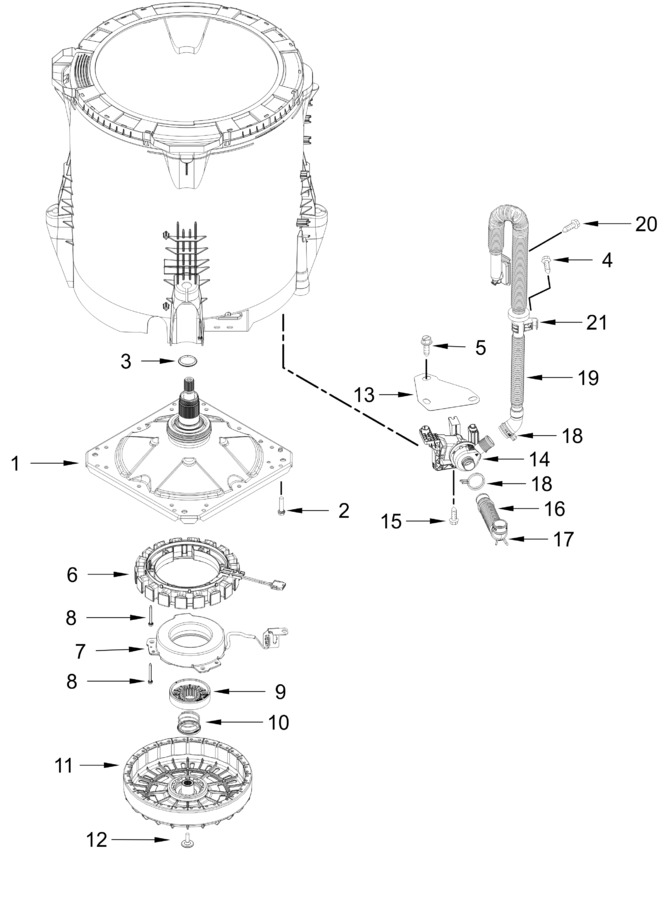

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11807607 | Assembly, Drive (Replaces: W11754447) |
|
Immediately | $ 364.81 | ||||
| 2 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 7.19 | ||||
| 3 | W11553312 | Washer, Thrust (Replaces: W11218170) |
|
Immediately | $ 15.79 | ||||
| 4 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.00 | ||||
| 5 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 6 | W11195971 | Stator, Motor (Replaces: W10897050) |
|
Immediately | $ 234.65 | ||||
| 7 | W10754448 | Clutch Assembly (Replaces: W10905022) |
|
Immediately | $ 137.09 | ||||
| 8 | W11027980 | Screw (Replaces: W10644129) |
|
Immediately | $ 7.73 | ||||
| 9 | W10734521 | Slider (Replaces: W10905025) |
|
Immediately | $ 42.17 | ||||
| 10 | W10734521 | Spring Assembly (Replaces: W10006494) |
|
Immediately | $ 42.17 | ||||
| 11 | W11260238 | Rotor, Motor (Replaces: W10897040) |
|
Immediately | $ 137.07 | ||||
| 12 | W11789511 | Screw (Replaces: W11753119) |
|
$ 11.75 | |||||
| 13 | W10894129 | Shield, Heat |
|
- | |||||
| 14 | W10876600 | Pump Assembly, Drain (Replaces: W10727777) |
|
Immediately | $ 180.49 | ||||
| 15 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.95 | |||||
| 16 | W10802689 | Tub To Pump Hose (Replaces: W10763259) |
|
$ 32.99 | |||||
| 17 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.39 | ||||
| 18 | WP285655 | Clamp, Hose (Replaces: W10142630) |
|
Immediately | $ 8.39 | ||||
| 19 | W11035296 | Hose, Internal Drain (Replaces: W10786886) |
|
$ 58.29 | |||||
| 20 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 21 | W10652932 | Clip, Hose |
|
$ 40.94 |
