Cabinet Parts


Cabinet Trim Parts


Dispenser Parts


Freezer Door Parts


Freezer Liner And Air Flow Parts


Freezer Shelf Parts


Icemaker And Ice Container Parts


Lower Unit And Tube Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Refrigerator Shelf Parts


Top Grille And Unit Cover Parts


Upper Unit Parts

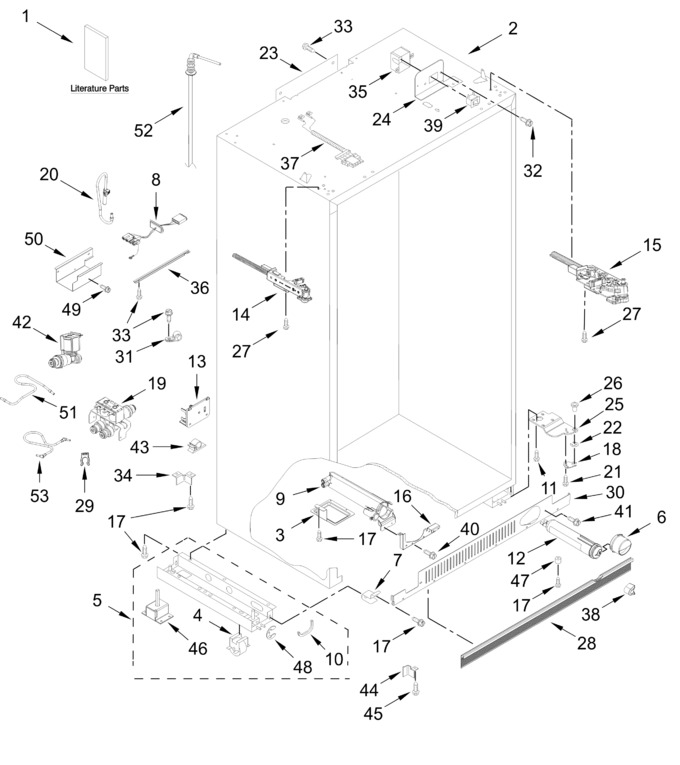

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	ARIF06CCFE9BD0F0FDB975806FEDA58D816		Cabinet (not Serviced)		Appelez-nous	-
3	2318189		Tray, Filter Drip				$ 148.73
4	WPW10138054		Roller Assembly   (Replaces: W10138054)				$ 45.34
5	W10860229		Base Assembly, Support (fc, Left Hand)   (Replaces: W10279275)				$ 381.83
6	W11238395		Cap, Water Filter (black)   (Replaces: W10797527)			Immediately	$ 50.68
7	W10839844		Bracket, Grill Mounting   (Replaces: 2307640)				$ 43.26
8	W11421923		Harness, Water Valve				$ 174.72
9	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 171.96
10	2307584		Grommet, Crossover Tube				$ 23.40
11	3400525		Screw				$ 12.83
12	W10121145		Filter, Water		Appelez-nous	-
13	W11784361		Bracket, Water Valve (dual)   (Replaces: W11427343)		Appelez-nous	-
14	W11791409		Hinge Assembly, Top (left Hand)   (Replaces: W11443675)		Appelez-nous	-
15	W11791410		Hinge Assembly, Top (right Hand)   (Replaces: W11443676)				$ 455.83
16	W11755873		Bracket, Filter   (Replaces: W11695780)				$ 80.33
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
18	WP2004994		Lock, Bushing   (Replaces: 2004994)			Immediately	$ 8.39
19	WPW10279866		Valve Assembly, Dual   (Replaces: W10279866)			Immediately	$ 138.28
20	W11634223		Waterline   (Replaces: W11447812)			Immediately	$ 136.46
21	W11769878		Screw   (Replaces: 3400230)				$ 12.77
22	WP489236		Ring, Bushing Retaining   (Replaces: 2005008)			Immediately	$ 12.78
23	2215612		Cover, Air Duct		Appelez-nous	-
24	W11788120		Bracket, Rocker Switch (left Hand)   (Replaces: W11780481)		Appelez-nous	-
25	W10527053		Hinge, Bottom (left Hand)   (Replaces: 2006779)				$ 137.73
26	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 90.72
27	W11777487		Screw   (Replaces: W11757187)				$ 29.86
28	WP2209024B		Skirt, Bottom Grille (black)   (Replaces: 2209024B)				$ 169.87
29	W10782424		Locking Ring(5/16")		Appelez-nous	-
30	W11739149		Grille, Bottom (black)   (Replaces: W11695789)			Immediately	$ 209.08
31	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 11.54
32	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
33	W11624204		Screw   (Replaces: 486194)				$ 14.72
34	2006617		Bracket, Base Support (rear)		Appelez-nous	-
35	W11756944		Cover, Switch   (Replaces: W11695310)		Appelez-nous	-
36	2320559		Support, Valve				$ 88.79
37	W10780213		Wire Assembly, Switch				$ 130.91
38	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 76.42
39	W11396033		Switch, Rocker   (Replaces: W10847848)			Immediately	$ 37.30
40	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
41	WP489464		Screw   (Replaces: W10005050)			Immediately	$ 8.38
42	W11246413		Valve, Isolation (no Flow Washer)   (Replaces: W10578757)			Immediately	$ 132.98
43	W10663352		Clip				$ 21.91
44	2006616		Bracket, Support Base (left Hand, Front)				$ 91.53
45	WPW10141604		Screw   (Replaces: W10141604)				$ 8.85
46	2005032		Leveler, Adjustable			Immediately	$ 200.07
47	2005433		Spacer, Door Skin (top)				$ 23.33
48	2006841		Ring, Retainer				$ 92.66
49	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
50	W11439643		Shield, Water Valve				$ 125.86
51	W11634221		Tube, Water   (Replaces: W11449524)				$ 92.77
52	W11212166		Fitting, Water   (Replaces: W10357286)			Immediately	$ 40.93
53	W11663448		Tube, Water Filter   (Replaces: W11450887)				$ 57.93
	WP2006780		Hinge, Bottom (right Hand)   (Replaces: 2006780)				$ 299.33
	W11776014		Installation Instructions		Appelez-nous	-
	W11291138		Switch, Rocker   (Replaces: W10847852)			Immediately	$ 36.67
	W10782423		Locking Ring (1/4")				$ 24.37
	W11771553		Owners Manual		Appelez-nous	-
	W11788118		Bracket, Rocker Switch (right Hand)   (Replaces: W11780475)		Appelez-nous	-
	ARI744A39619562C01DE39E694D1CE8F7D9		(freezer)		Appelez-nous	-
	W11761063		Energy Guide		Appelez-nous	-
	ARIC467EA2065EBD6EE51D04A55E53CAB77		(refrigerator)		Appelez-nous	-
	W11494196		Tech Sheet		Appelez-nous	-
	W10860448		Base Assembly, Support (rc, Right Hand)   (Replaces: W10138423)			Immediately	$ 383.00
	2006556		Bracket, Support Base (right Hand, Front)				$ 37.20
