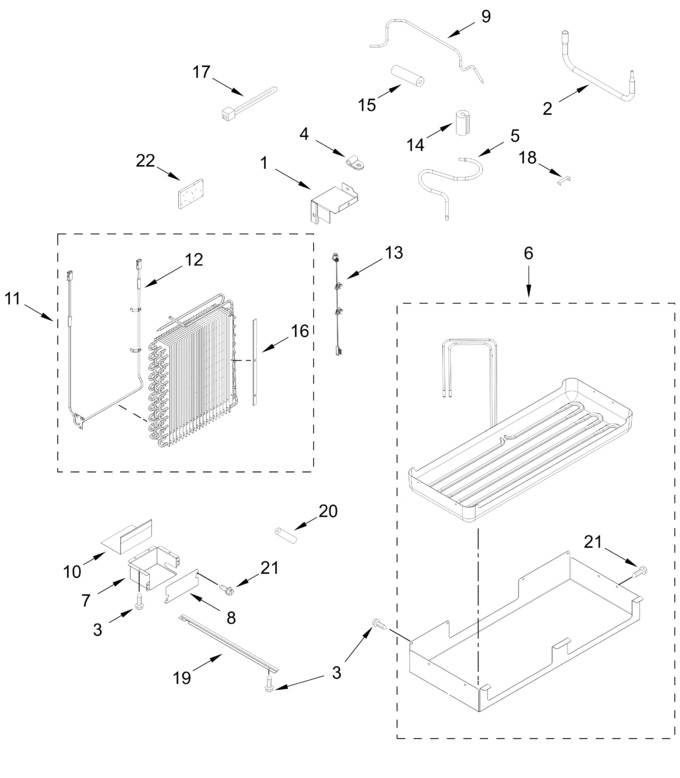

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756943		Bracket, Evaporator Right Top   (Replaces: W11695309)		Appelez-nous	-
2	W11698962		Tube, Transition (drier/restrictor)		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.72
4	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 11.54
5	W11444578		Tube, Oil Trap Suction		Appelez-nous	-
6	W11623101		Pan Assembly, Drain   (Replaces: W11491712)			Immediately	$ 394.02
7	W11756953		Cover, Wiring Bottom   (Replaces: W11695781)		Appelez-nous	-
8	W11756952		Cover, Wire Box   (Replaces: W11695782)		Appelez-nous	-
9	W11445483		Tube, Discharge		Appelez-nous	-
10	W10321050		Shelf, Wiring Cover		Appelez-nous	-
11	W11629712		Evaporator And Heater Assembly   (Replaces: W11408051)		Appelez-nous	-
12	W11267070		Heater, Defrost				$ 226.38
13	W11629268		Thermistor, Evaporator   (Replaces: W11549269)			Immediately	$ 34.51
14	W11715935		Grommet, Air Return   (Replaces: W10413009)				$ 13.58
15	W11751592		Sleeve   (Replaces: W10303521)			Immediately	$ 21.32
16	W10432308		Gasket, Evaporator		Appelez-nous	-
17	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 8.30
18	W10169509		Clip, Heat Exchanger		Appelez-nous	-
19	2320554		Support, Drain Pan		Appelez-nous	-
20	2215648		Dampener				$ 13.21
21	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
22	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 14.77
	ARI9B437A9AB478C7E2DEB1C4CC29D600EE		(capillary Tube To Evaporator)		Appelez-nous	-
	W11506620		8 Nk Al 00			Immediately	$ 32.10
	W11504450		4/1.8 Nr Ms 00			Immediately	$ 46.52
	ARI500F2B538D318C1E3390E0716ECE69B7		(also Order The Following Lokring™ Parts)		Appelez-nous	-
	ARI01A2781A3F964B0DAEAA0FEA5F13BC43		(suction Line To Evaporator)		Appelez-nous	-
