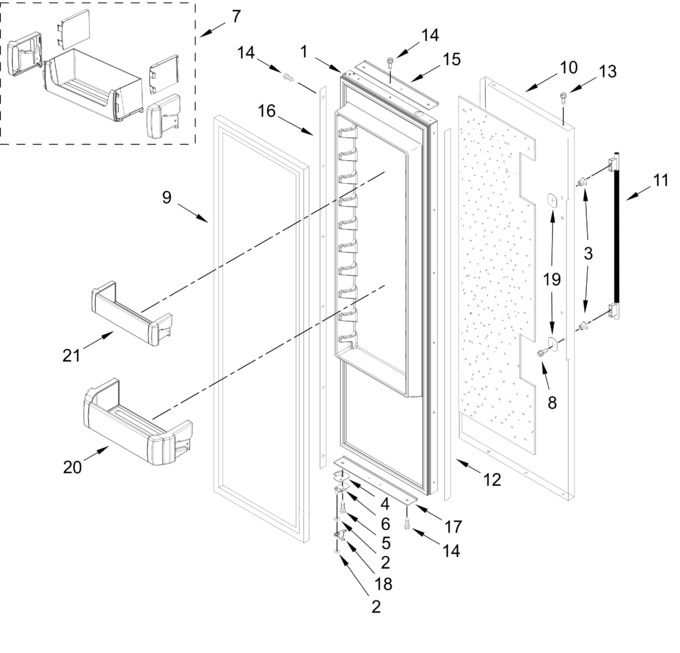

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11832392		Door, Refrigerator   (Replaces: W11576431)		Appelez-nous	-
2	WP2006346		Washer, Door Bearing   (Replaces: 2006346)			Immediately	$ 11.76
3	W11157086		Stud, Mounting   (Replaces: W11049903)			Immediately	$ 8.87
4	W11673500		Spacer, Door Hinge   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	2302878		Hinge Assembly, Bottom			Immediately	$ 91.01
7	W11610621		Bin, Top Door		Appelez-nous	-
8	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
9	W11625072		Gasket, Door (grey)   (Replaces: W10760884)				$ 295.71
10	W11819003		Skin, Rc Door (stainless)   (Replaces: W11737537)		Appelez-nous	-
11	W11784350		Handle, Door (stainless)   (Replaces: W11737006)			Immediately	$ 271.05
12	W10758113		Spacer, Handle Side Door		Appelez-nous	-
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
14	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
15	W10758121		Spacer, Door Skin (top)		Appelez-nous	-
16	W10756209		Spacer, Hinge Side Door		Appelez-nous	-
17	W10761935		Spacer, Door Skin (bottom)		Appelez-nous	-
18	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28
19	W10127710		Plate, Handle Door			Immediately	$ 25.94
20	W11408928		Bin, Gallon Door		Appelez-nous	-
21	W11408934		Bin, Shallow Door		Appelez-nous	-
	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-
